VIRTUE 77 TBO

The Virtue 77 TBO features a 77cm / 30.5″ steel cutter deck with twin blades for maximum productivity across the largest areas such as lawns, public spaces or sports pitches.

RRP incl. VAT

£2,499.00

FIND YOUR LOCAL DEALER



DESCRIPTION

The 77 TBO features a wide 77cm cutting width and 3 speed drive. Featuring a twin blade steel cutter deck with all the commercial features expected from a WEIBANG, including adjustable handles, front bumper and a WEIBANG XCV300 engine. The machine offers 4 in 1 functionality for work in any area.
Email
WhatsApp
Facebook
Copy Link

Find a Virtue dealer near you

VIRTUE 77 TBO Features

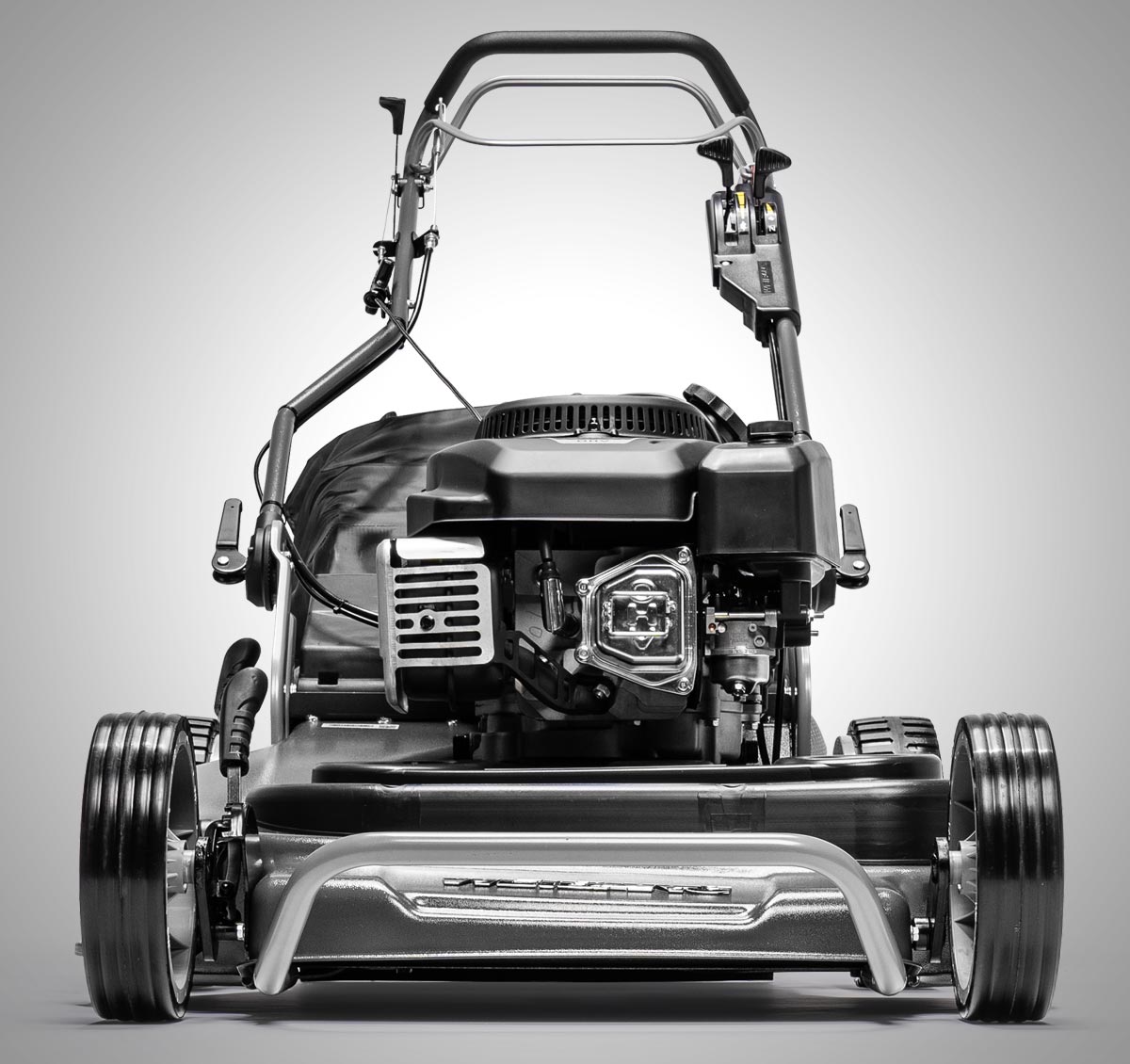

MAXIMUM PRODUCTIVITY

With a large 77cm dual blade cutting width the 77 TBO offers an incredible increase in productivity of 45% when compared to our 53cm Virtue models, allowing areas of up to 4500m² to be cut with ease.

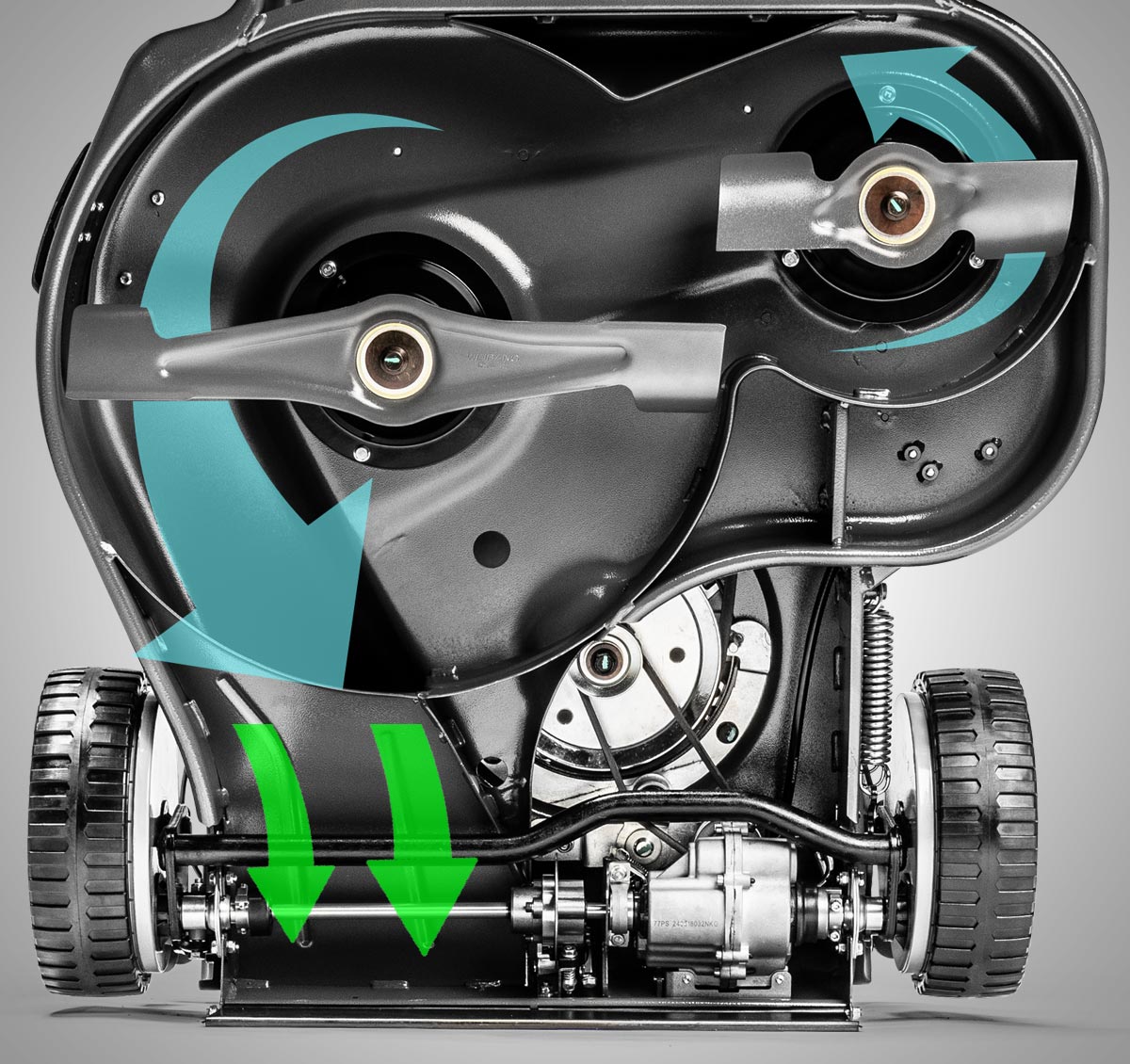

TBO – Twin Blade System

The newest addition to the Virtue range offers an unrivalled 77cm cutting width with a twin blade overlap design. Enabling the largest areas to be cut with ease and with an additional 45% more productivity when compared to a 53cm model, the 77 TBO is the flagship of the Virtue family. It is the overlap deck design that allows for a wide area to be cut efficiently and gives huge benefits to the collection, side discharge and mulching performance.

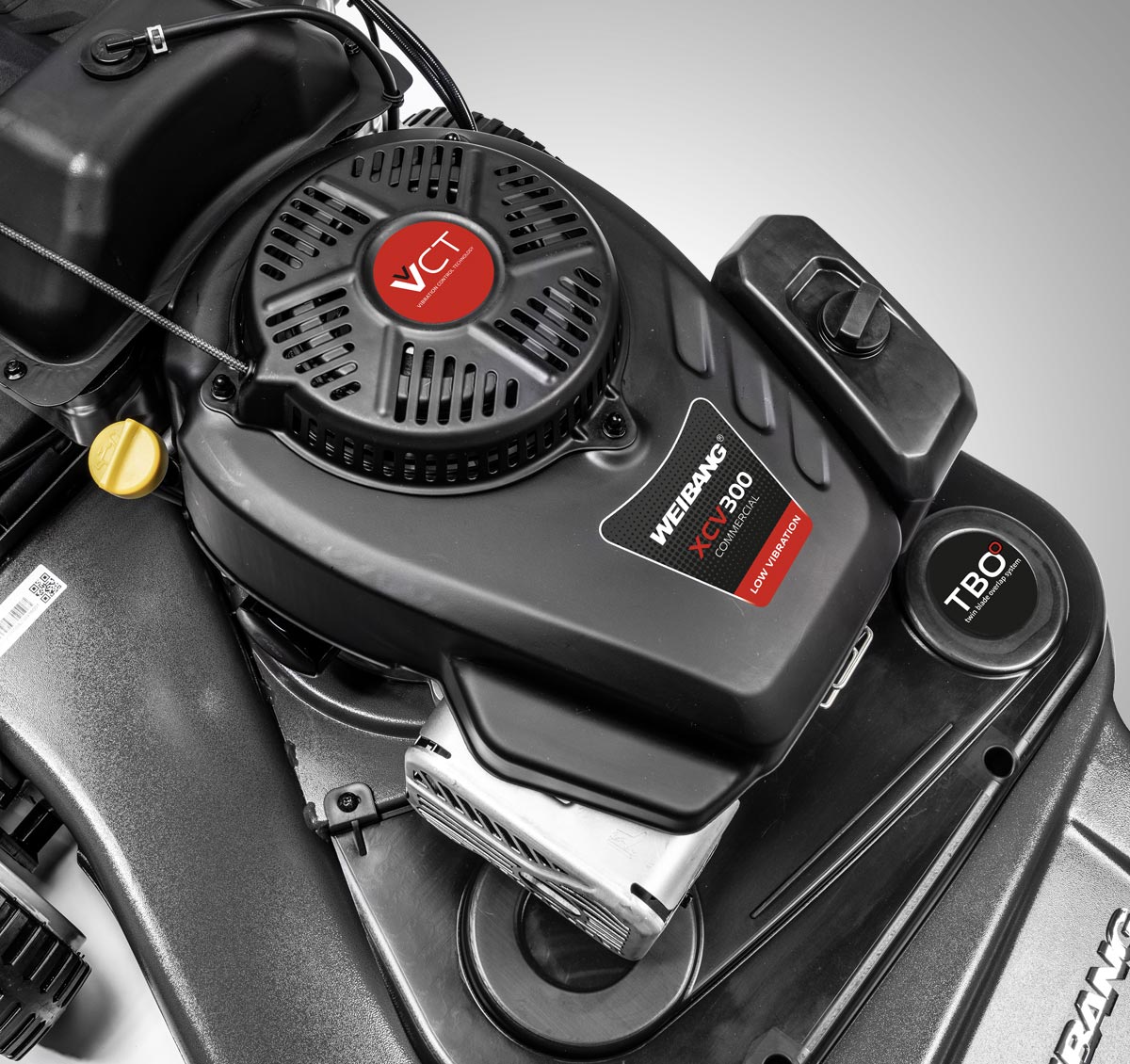

WEIBANG VCT Engine

The Virtue 77 TBO features the latest generation WEIBANG XCV Series engine. The new design offers exceptionally low vibration thanks to new engineering techniques and features 300cc / 5.6kW power output for consistent performance. The engine also produces 17.3 Nm of torque giving the power needed for tough conditions.

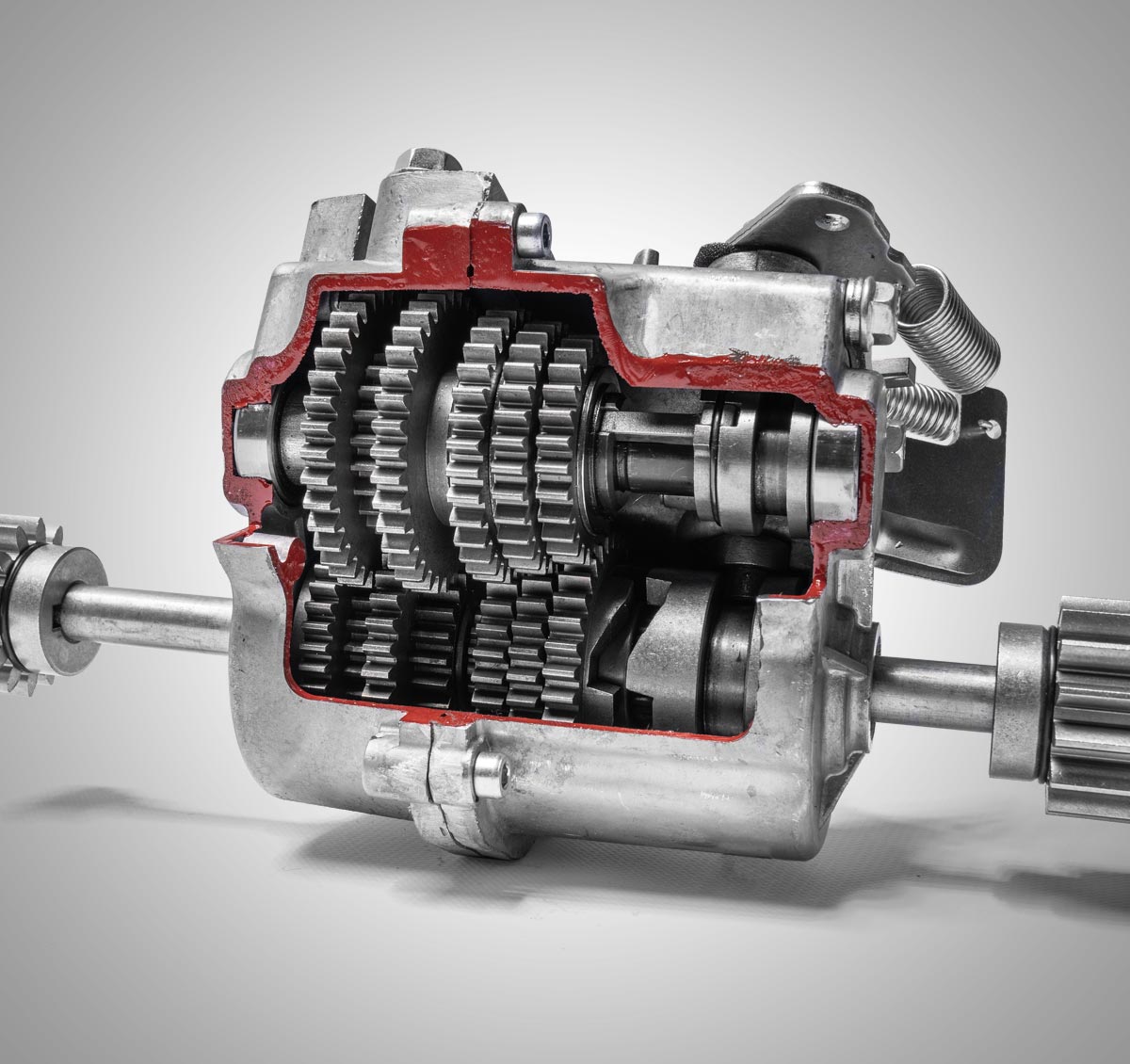

PROFESSIONAL ALUMINIUM GEARBOX

The Virtue 77 TBO features a heavy duty commercial 3 speed gearbox. Manufactured with high quality aluminium casings, hardened steel internal components, and solid gears to ensure precise and reliable drive.

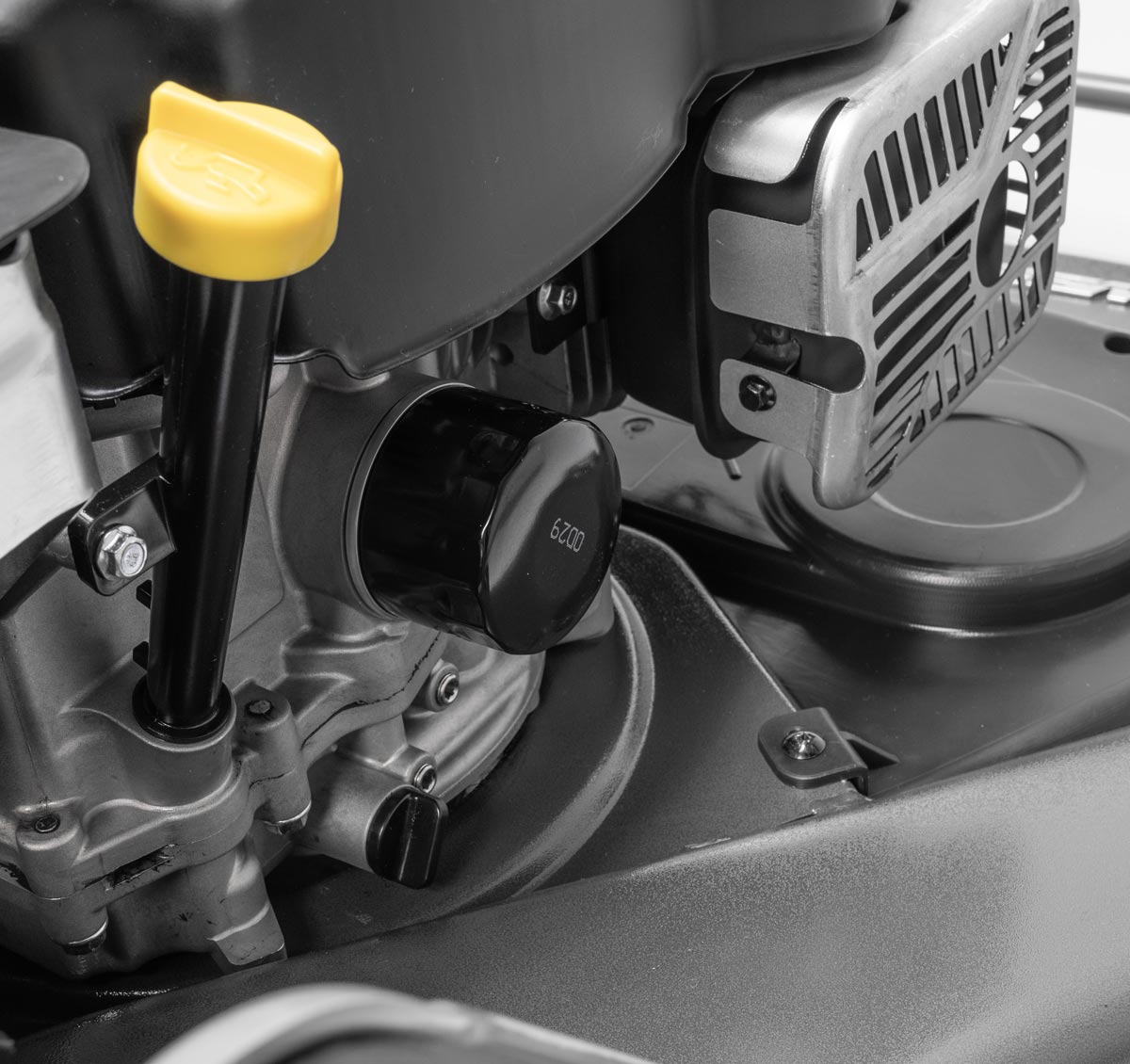

PRESSURE LUBRICATED

The XCV300 engine features pressure lubrication with a spin-off oil filter for ease of maintenance. The pressurised system ensures ultimate durability as well as the ability to work on slopes.

MAXIMUM PRODUCTIVITY

With a large 77cm dual blade cutting width the 77 TBO offers an incredible increase in productivity of 45% when compared to our 53cm Virtue models, allowing areas of up to 4500m² to be cut with ease.

TBO – Twin Blade System

The newest addition to the Virtue range offers an unrivalled 77cm cutting width with a twin blade overlap design. Enabling the largest areas to be cut with ease and with an additional 45% more productivity when compared to a 53cm model, the 77 TBO is the flagship of the Virtue family. It is the overlap deck design that allows for a wide area to be cut efficiently and gives huge benefits to the collection, side discharge and mulching performance.

WEIBANG VCT Engine

The Virtue 77 TBO features the latest generation WEIBANG XCV Series engine. The new design offers exceptionally low vibration thanks to new engineering techniques and features 300cc / 5.6kW power output for consistent performance. The engine also produces 17.3 Nm of torque giving the power needed for tough conditions.

PROFESSIONAL ALUMINIUM GEARBOX

The Virtue 77 TBO features a heavy duty commercial 3 speed gearbox. Manufactured with high quality aluminium casings, hardened steel internal components, and solid gears to ensure precise and reliable drive.

PRESSURE LUBRICATED

The XCV300 engine features pressure lubrication with a spin-off oil filter for ease of maintenance. The pressurised system ensures ultimate durability as well as the ability to work on slopes.

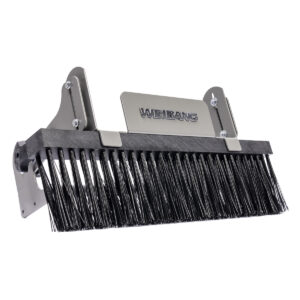

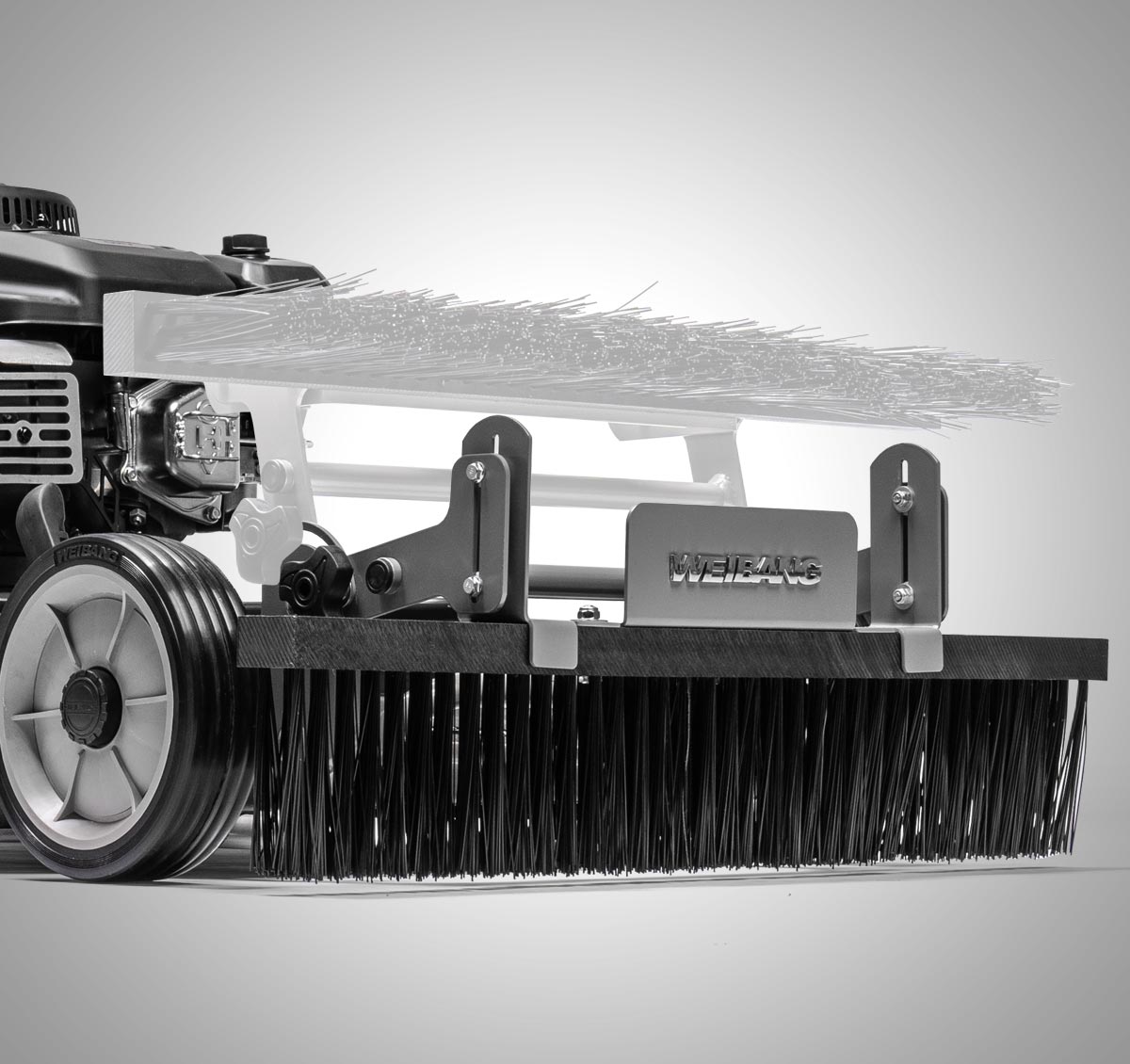

OPTIONAL STRIPE BRUSH
The optional stripe brush is fully adjustable and can be lowered into position when working, and raised up for transportation. The brush itself also features a height adjustment to alter the intensity when in use. The brush does not require any tools to remove when not being used and incorporates a bumper, rather than the original bumper being used.

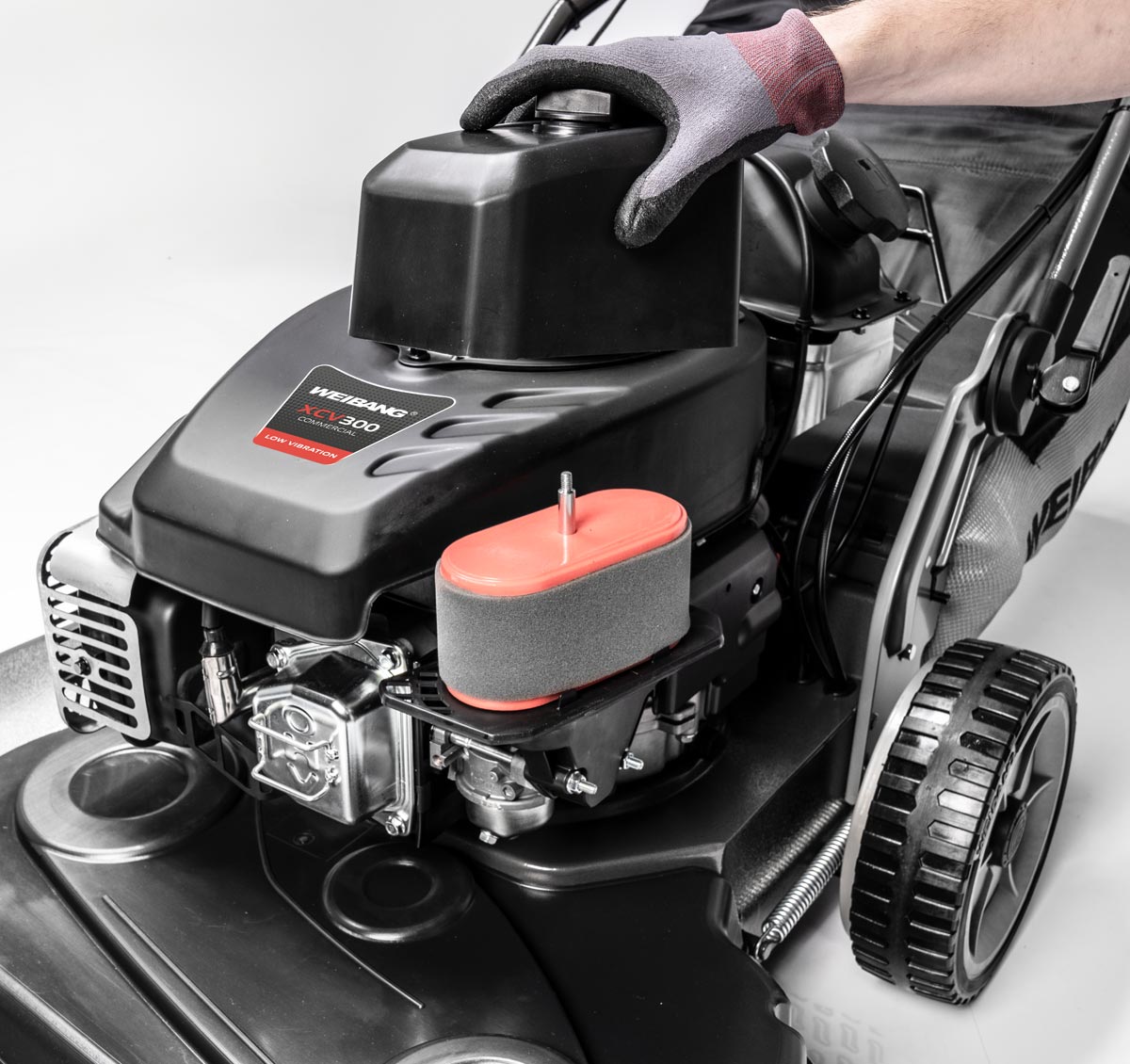

EASY MAINTENANCE
As a commercial machine the 77 TBO was designed for simple maintenance, with easy access to the oil dipstick, spark plug, oil and air filters, to make routine maintenance fast and minimise downtime.

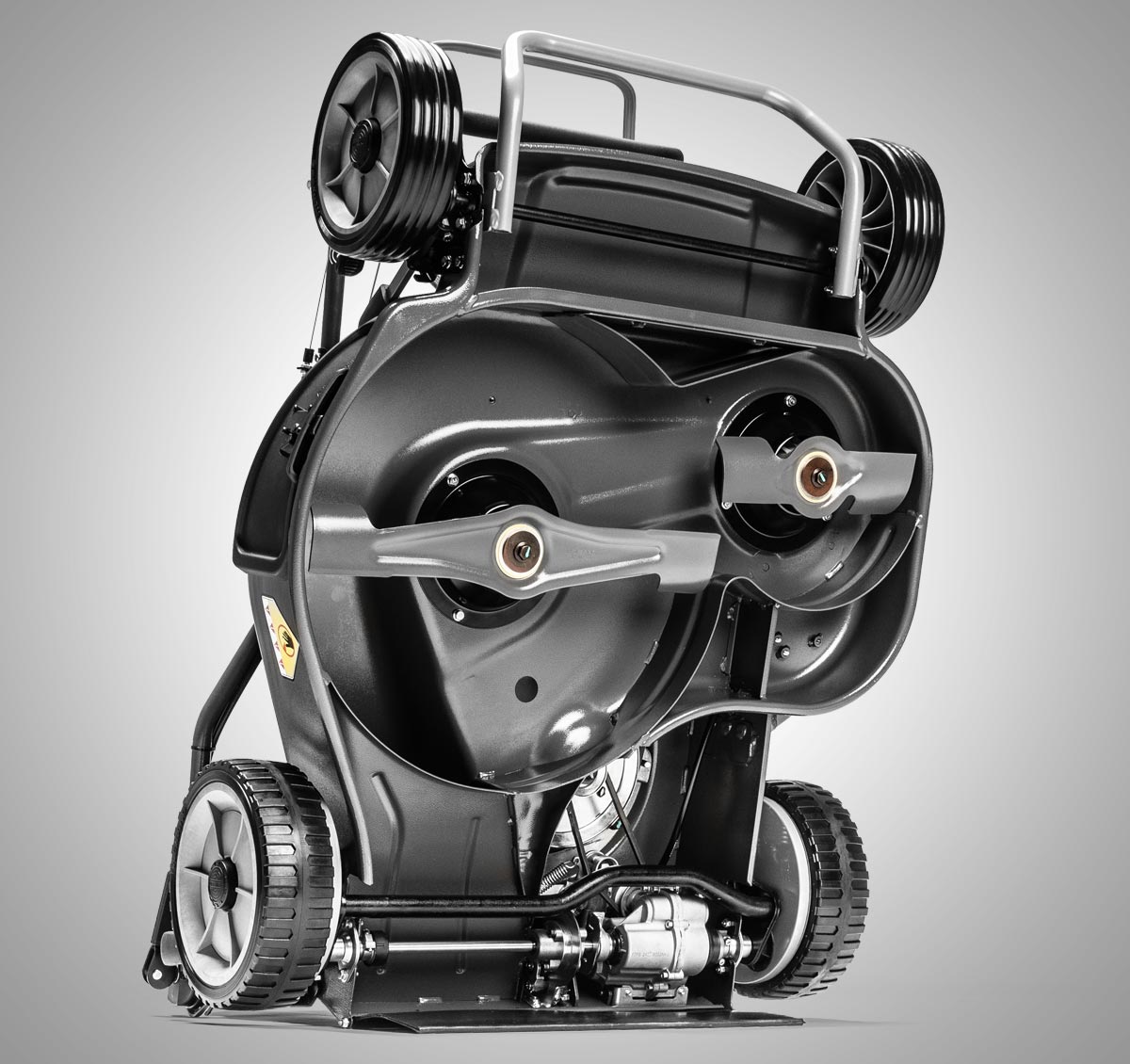

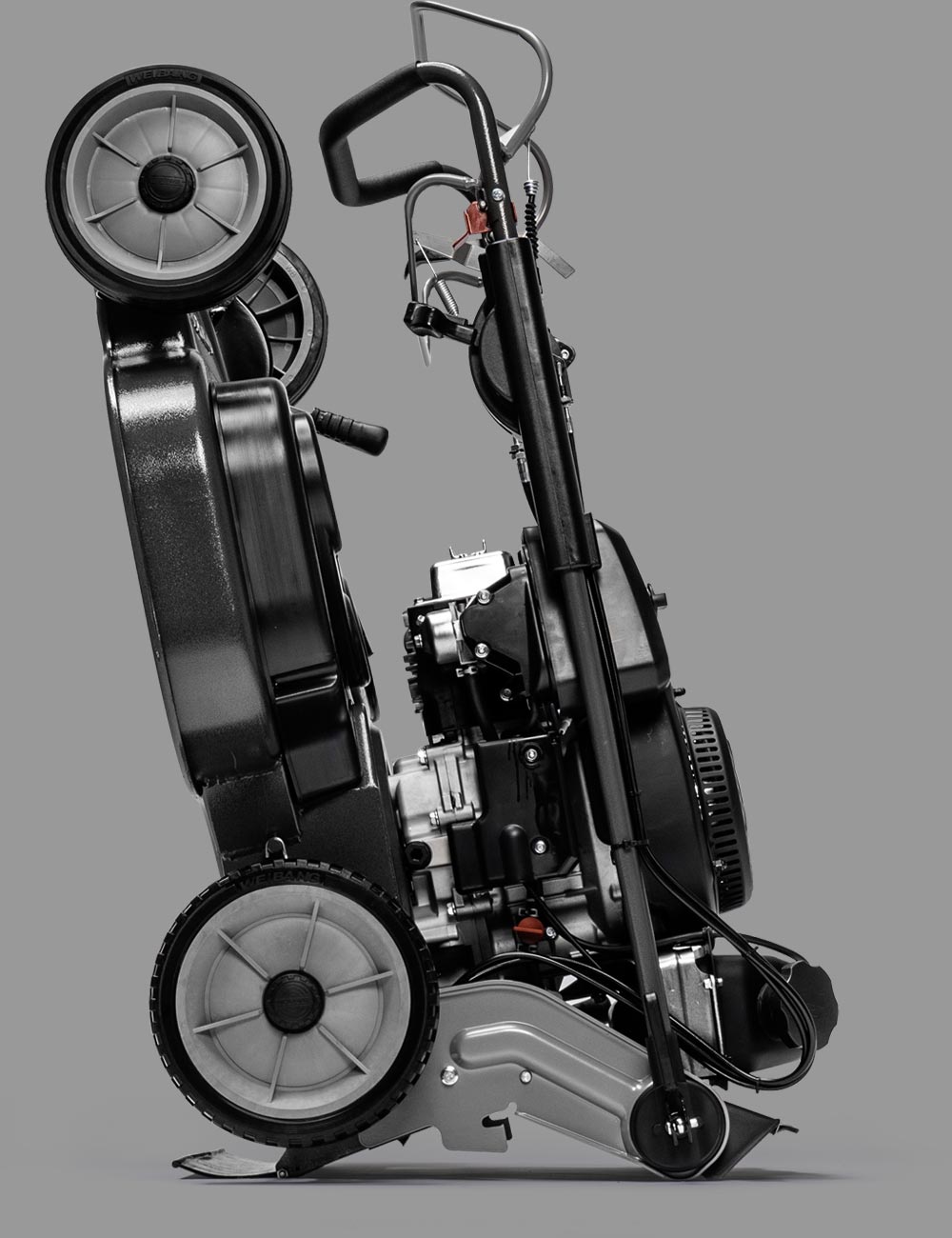

SERVICE & STORAGE POSITION
As a commercial lawnmower, easy transportation is key which is why we developed our quick release folding handles to allow for easy lifting when moving between locations, and easy access to the underside of the deck in the service position for cleaning and general maintenance.

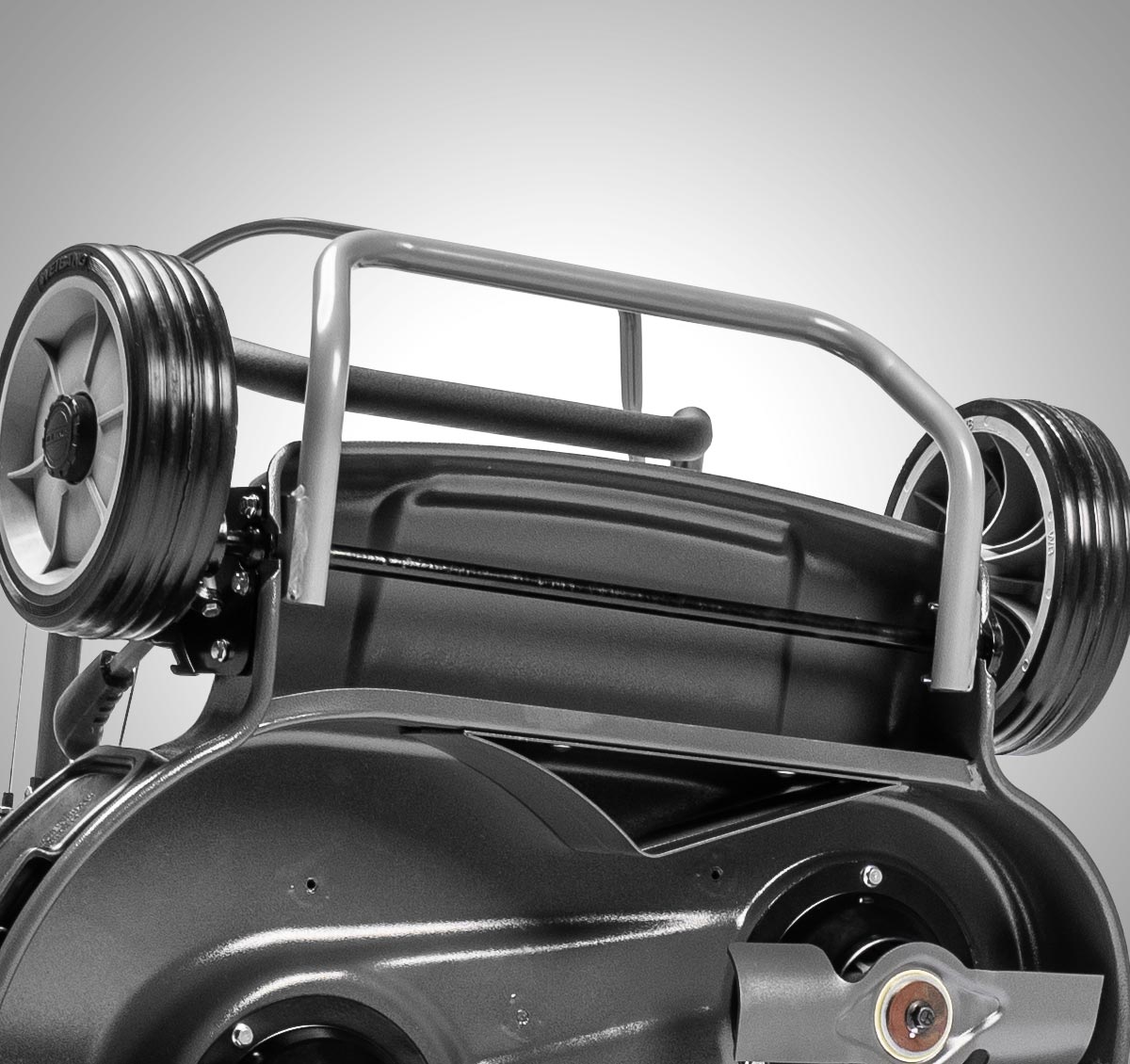

HEAVY DUTY BUMPER & ROLLED EDGE DECK
The cutter deck and front wheels are protected from accidental knocks by a heavy duty front bumper, which doubles up as a lifting handle for transportation. Due to the larger size of the machine additional deck rigidity comes from the specially designed rolled steel edge to the deck.

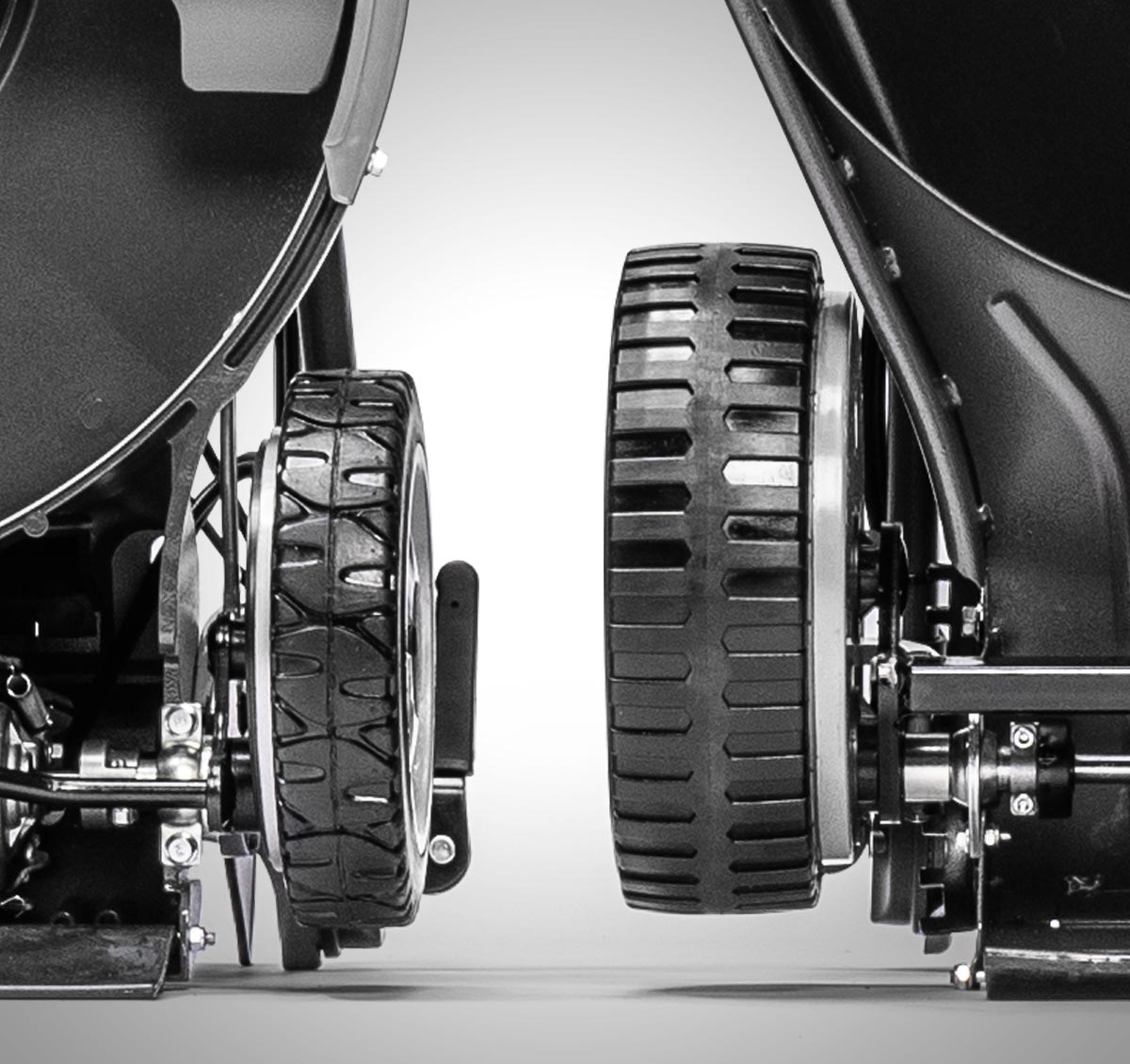

NEW WIDER WHEELS
Due to the additional weight of the machine we have increased the diameter and width of the front and rear wheels to ensure that the ground pressure is the same as a 53cm model, avoiding wheel marks on the lawn.
INDEPENDENT HEIGHT OF CUT
The 77 TBO features independent height adjustment for the front and rear of the machine with 15 cutting heights from 17mm – 129mm to maintain any grass area whether short and formal or longer and more natural.

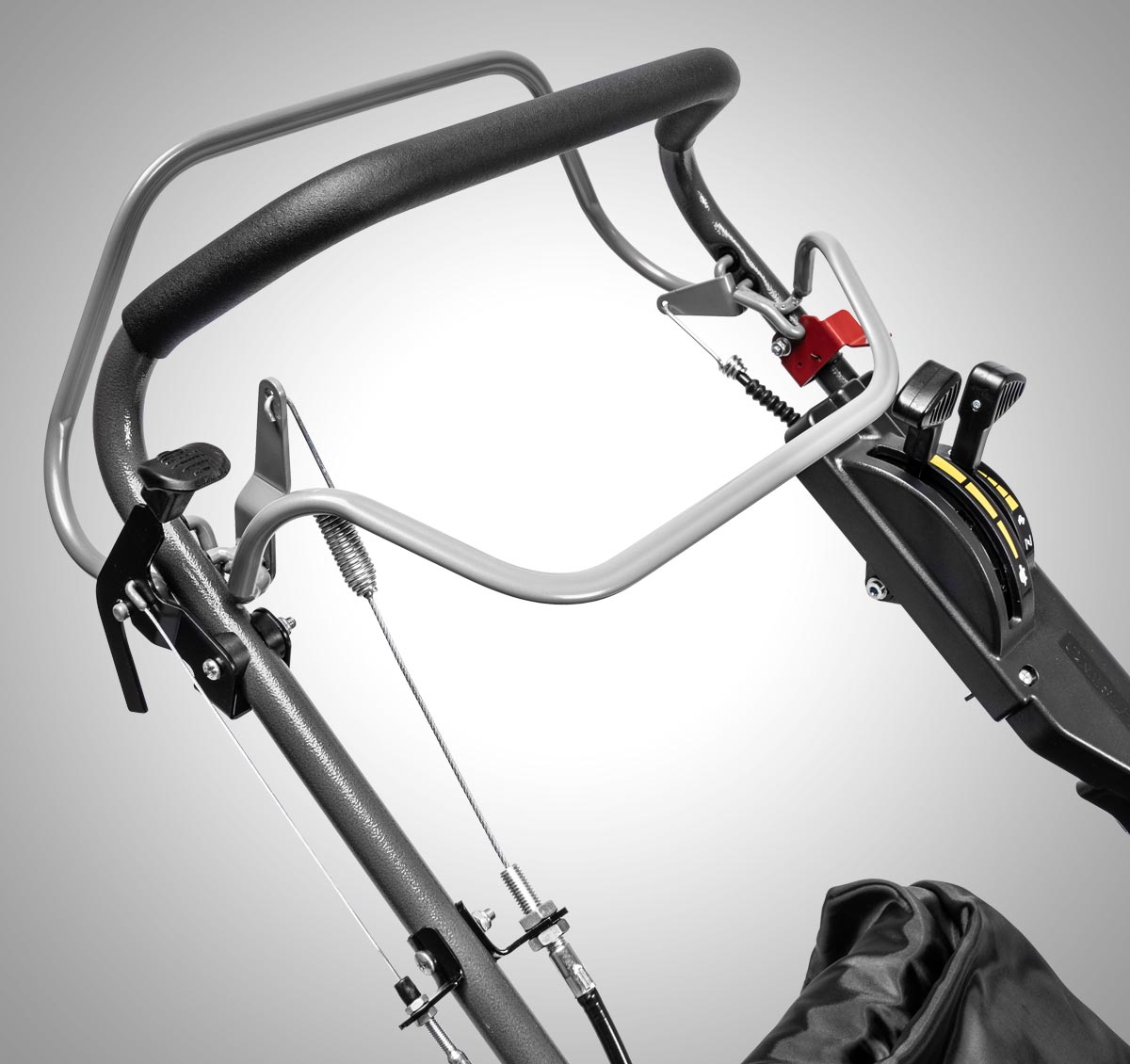

EASY TO OPERATE
The WEIBANG controls are designed for simple operation and unrivalled durability. Featuring a heavy duty rubber grip, flush OPC and drive levers for user comfort, and simple throttle and speed levers which can be easily accessed for routine maintenance. Due to the additional weight of the 77 TBO the handles feature a parking brake, ensuring safety when not in use or during transport. The blade brake system also allows drive to function without the blade engaged.
SIDE DISCHARGE
The Virtue 77 TBO offers 4 in 1 functionality, with rear discharge and rear collect, side discharge for overgrown areas such as paddocks and pathways, and mulching.

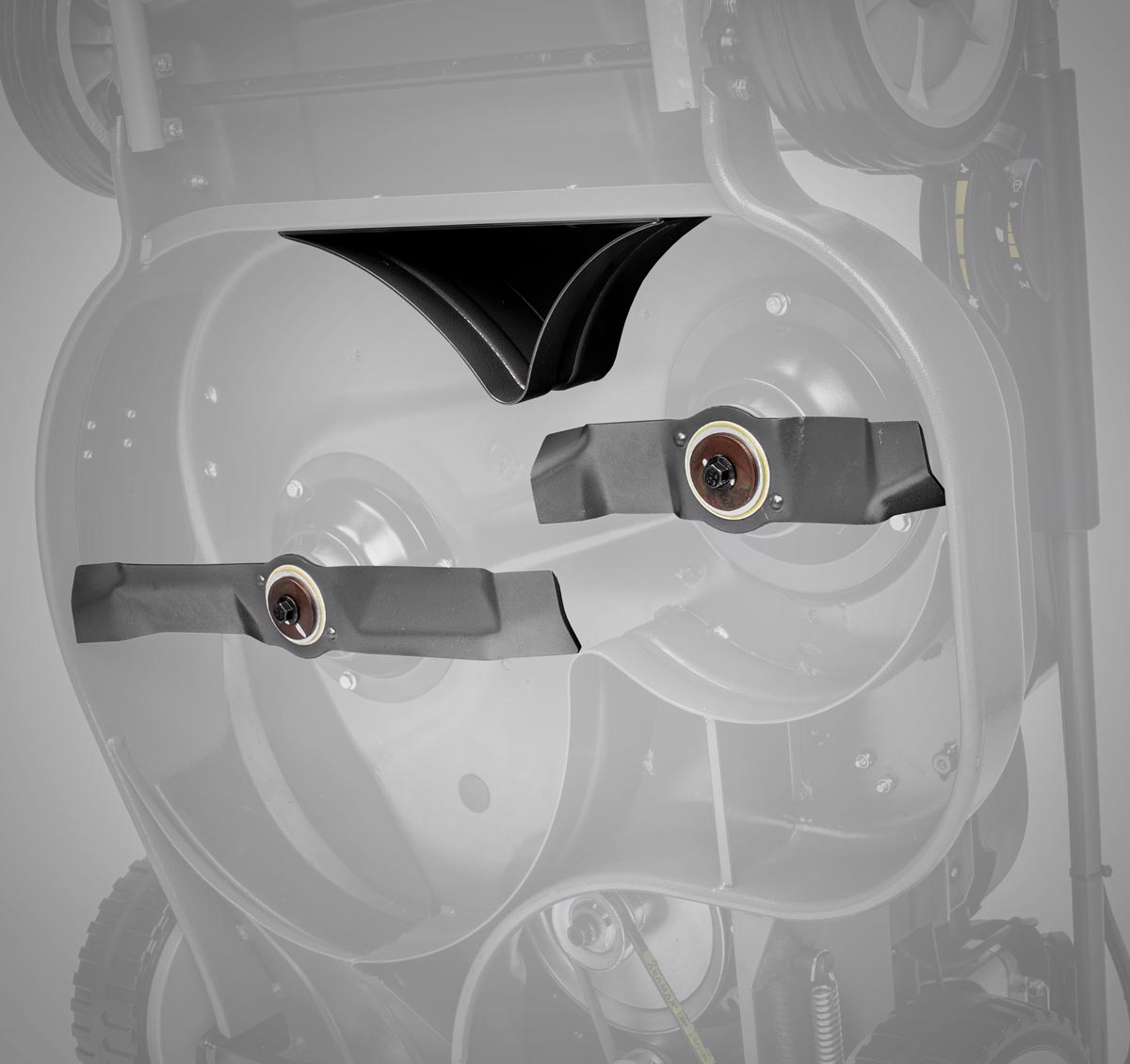

HIGH PERFORMANCE MULCHING
The 77 TBO includes a high performance mulch kit comprising of specially designed blades and a deeper baffle plate to hold grass in the cutter deck for continuous cutting. Thanks to the service and storage position, the mulching kit can be fitted with ease.
LARGE 90L COLLECTOR
The large 90L collector allows longer cutting periods between emptying as well as featuring airflow fabric to indicate when the collector is full and avoid blockages. The grassbag has had additional reinforcement added to the material on the corners and sides to handle the additional weight from long wet grass.
Shaft Drive
The shaft drive system offers direct power transfer for maximum performance and minimum maintenance.
Full Deck Protection
The cutter deck of the Legacy features fully replaceable protection, with a steel inner deck liner to prevent damage from stones and other objects, and outer steel deck liners to protect the aluminium deck when mowing near walls or other inevitable knocks during use.
CPS - Crank Protection System
All WEIBANG Legacy commercial mowers feature CPS – Crank Protection System, whereby the blade is mounted via a friction disc to avoid damage to the crankshaft in the event of hitting an obstacle such as a stone or tree root. (excludes BBC models)
VRS - Vibration Reduction System
The Legacy features WEIBANG’s Vibration Reduction System (VRS). This is a heavy duty aluminium bracket with a rubber AV liner that dampens vibration through the handles, as well as adding additional strength and durability.

The quick release handles also feature an aluminium ratchet system with cable protection, allowing for full height adjustment to suit any operator while keeping cables safe.
Central Height Adjustment
The central height adjustment is supported by a heavy duty spring for assistance. With a choice of 11 positions between 13 and 67mm the Legacy is capable of tackling anything from a short formal lawn to more natural areas. The height of cut can be adjusted in 5/6 mm increments allowing for the perfect finish and stripe on any lawn.
Heavy Duty Bumper & Air Fins
The cutter deck and front wheels are protected from accidental knocks by a heavy duty front bumper, which doubles up as a lifting handle for transportation. The integrated fins mounted at the front of the cutter deck allow maximum airflow into the cutter deck, ensuring the highest collection performance at any cutting height.
Optional Stripe Brush
The optional stripe brush is fully adjustable and can be lowered into position when working, and raised up for transportation. The brush itself also features a height adjustment to alter the intensity when in use. The brush does not require any tools to remove when not being used and incorporates a bumper, rather than the original bumper being used.
Central Height of Cut
The single lever height adjustment is supported by a heavy duty spring for assistance. With a choice of positions from as little as 20mm to as much as 80mm, the Virtue is capable of tackling anything from a short formal lawn to more overgrown areas. The single adjustment lever is also fitted inside the rear wheel to ensure it’s protected when mowing against walls and hedges.
Heavy Duty Bumper & Durable Wheels
The cutter deck and front wheels are protected from accidental knocks by a heavy duty front bumper, which doubles up as a lifting handle for transportation. The wide commercial wheels consist of a new nylon compound rim and durable polyurethane tread for steel deck machines, and aluminium rims with rubber compound for the aluminium deck models. To further enhance the durability, the double wheel bearings are all fully protected to reduce water and dust ingress.
Emptying Handle
The collector features a full width rear handle that doesn’t pinch the collector during emptying, resulting in easier and faster emptying of the large fabric bag.

Product Information

VIRTUE 77 TBO

Additional information

Model

77 TBO
Article Number

WGMP140
Cutting Width (cm/”)

77 / 30.5 Twin Blade Overlap
Cutter Deck Material

Steel
Suitable Area

up to 4500m²
Drive

PRO 3 Speed
Drive Speed

3 / 3.5 / 4.5 km/h
Blade Brake Clutch

Blade Brake
Engine Make

WEIBANG
Engine Model

XCV300
Engine Displacement (cc)

300
Engine Rated Power (kW/rpm)

5.6 / 3200
Fuel Tank Capacity (l)

4.0
Crank Protection

CPS – Slip Washer
Collector Capacity (l)

90 – Inc. Airflow Fabric
Rear Discharge

Yes
Mulching

Yes – High Performance Kit
Side Discharge

Yes
Height Adjustment Type

Independent Front & Rear
Height Adjustment Positions

15
Cutting Heights (mm)

17 – 129 (Collect & Side Discharge) / 29 – 129 (Mulching)
Quick Release Handles

Adjustable Ratchet
Service Position

Yes
Storage / Transport Position

Yes
Front Bumper

Yes
Deck Protection

Rolled Deck Lip
Wheel Material (rim/tyre)

HD Nylon / Polyurethane
Weight (kg)

108
Dimensions LxWxH (mm)

1960 x 820 x 1250
Storage Dimensions LxWxH (mm)

1200 x 820 x 610
Vibration Level (m/s²)

4.5
Noise Level (dB(A))

100
Do the hollow tines have the same fitting as the solid ones?
Yes. The hollow times are fitted to the same carrier.
Question for question 2
This is the answer to question 2
How much oil goes in the engine?
0.6L of 10W30
Question for question 3
This is the answer to question 3
When should I change the oil?
First oil change at 20 hours, then every 100 hours or 6 months.
Are the tines individually replaceable, or as a set?
The tines are available individually.
How much oil goes in the engine?
2.4L of 10W30
When should I change the oil?
First oil change at 5 hours, then every 100 hours or 25 hours with heavy use.
What is the maximum angle this machine can be operated at?
12 degrees (20%) from horizontal
How much oil goes in the engine?
1L of 10W30
When should I change the oil?
First oil change at 25 hours, then every 50 hours or yearly.
Are the collector bag closing buckles available separately?
Yes, available individually as a kit.
When should I change the oil?
First oil change at 5 hours, then every 50 hours or yearly.
What does a Blade Brake Clutch do?
The Blade Brake Clutch (BBC) allows easy engagement and disengagement of the mower blade whilst the engine is running. This allows the user to empty the grass collector or move to a different mowing area without the engine requiring to be turned off and restarted.
How does the crankshaft protection system on the mower work?
The Weibang Crankshaft Protection System helps to reduce the risk of accidental damage caused to the crankshaft when a hard object is struck with the mower blade. The mower blade on the Weibang Legacy roller mower is fitted against a slightly domed disc. If the mower blade hits a hard object, the blade will slip on the edge of the disc greatly reducing the impact passed through the crankshaft which can potentially lead to costly damage.
The Weibang Rear Roller Mowers are heavier than other roller mowers on the market. Why is this?
Weibang Legacy rear roller mowers are manufactured using heavy duty, robust components to guarantee a long service life. The Weibang Legacy range of rear roller mowers are designed to leave a clear attractive stripe on the lawn and in order to achieve this, there needs to be adequate weight over the rear roller.
Can you mulch using a Weibang Legacy roller mower?
The Weibang Legacy roller mowers do not have a mulch function. In order to achieve the clearest stripe, optimum collection performance is essential. If you are looking for a mower capable of mulching, we recommend looking at the four wheeled Weibang Virtue lawn mower range.
How do I store the lawnmower over the winter?
Ensure the mower is clean and dry before storing over the winter in your garden shed or garage. We recommend adding B3C Ethanol Shield Fuel Stabiliser to the fuel throughout the mowing season which protects the engine from damage caused by Ethanol in fuel. If a fuel stabiliser is not usually used, we would advise to add some to the fuel before you store the mower and allow the engine to run for approximately 10 minutes to ensure the stabiliser passes through the fuel system.
Is it ok to clean the grass collector with a hose pipe?
Yes, it is important that the grass collector is kept as clean as possible. The special airflow design of the collector aids the collection capability of the mower. If the fabric is covered in grass cuttings, airflow is restricted leading to reduced collection performance. Grass clippings which are left on the collector for prolonged periods of time can also cause the fabric to break down.
How often should I have the Weibang Legacy lawnmower serviced?
We advise that to keep any warranty valid and the high performance of the mower is maintained, the lawn mower should be serviced annually at your local Weibang service dealer. A good time to have the lawnmower serviced is at the end of the season prior to storing it away for the winter so you can be sure the mower is ready for when the next season comes around
