VIRTUE 77 TBO

The Virtue 77 TBO features a 77cm / 30.5″ steel cutter deck with twin blades for maximum productivity across the largest areas such as lawns, public spaces or sports pitches.

RRP incl. VAT

£2,499.00

FIND YOUR LOCAL DEALER



DESCRIPTION

The 77 TBO features a wide 77cm cutting width and 3 speed drive. Featuring a twin blade steel cutter deck with all the commercial features expected from a WEIBANG, including adjustable handles, front bumper and a WEIBANG XCV300 engine. The machine offers 4 in 1 functionality for work in any area.
Email
WhatsApp
Facebook
Copy Link

Find a Virtue dealer near you

VIRTUE 77 TBO Features

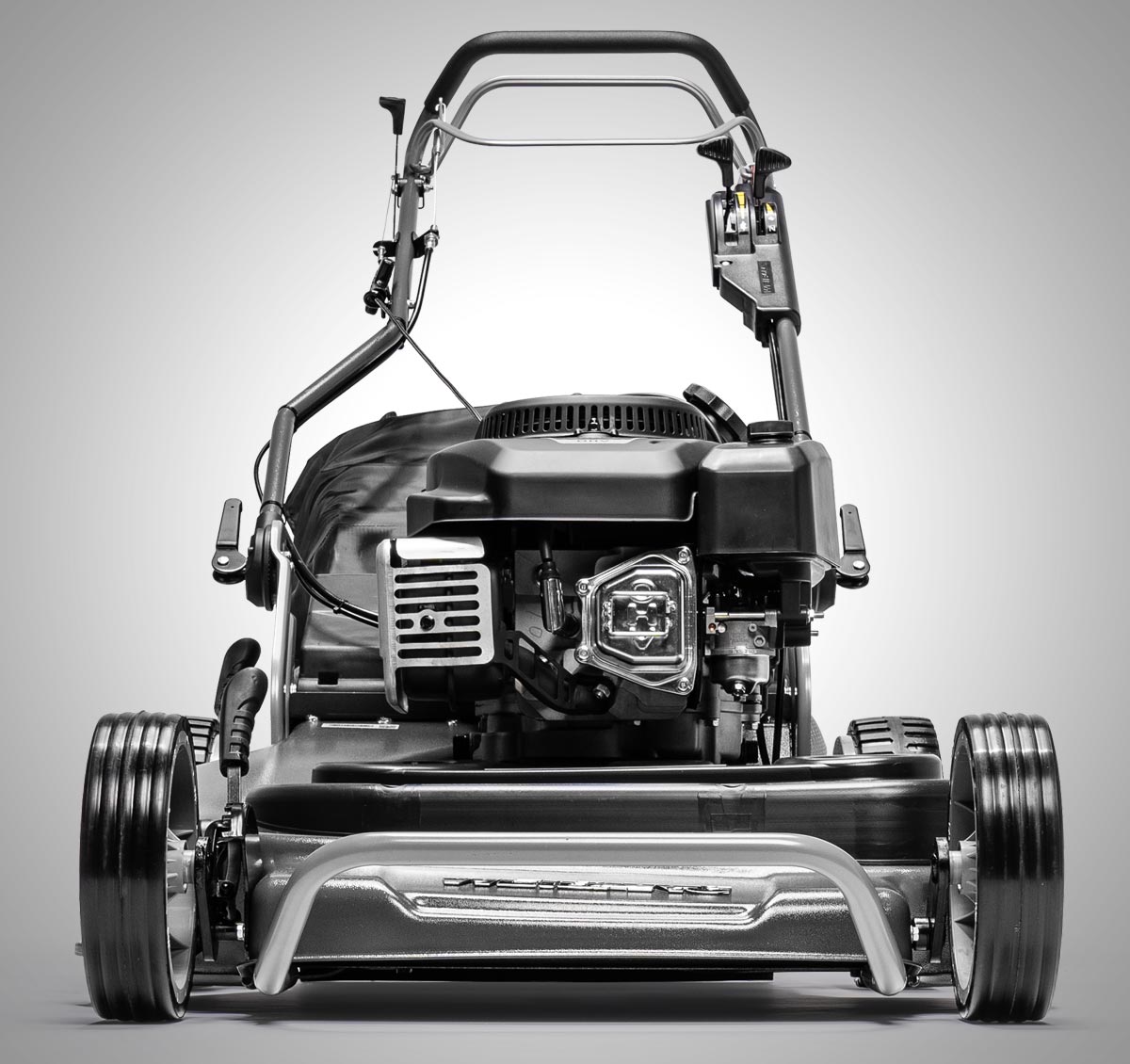

MAXIMUM PRODUCTIVITY

With a large 77cm dual blade cutting width the 77 TBO offers an incredible increase in productivity of 45% when compared to our 53cm Virtue models, allowing areas of up to 4500m² to be cut with ease.

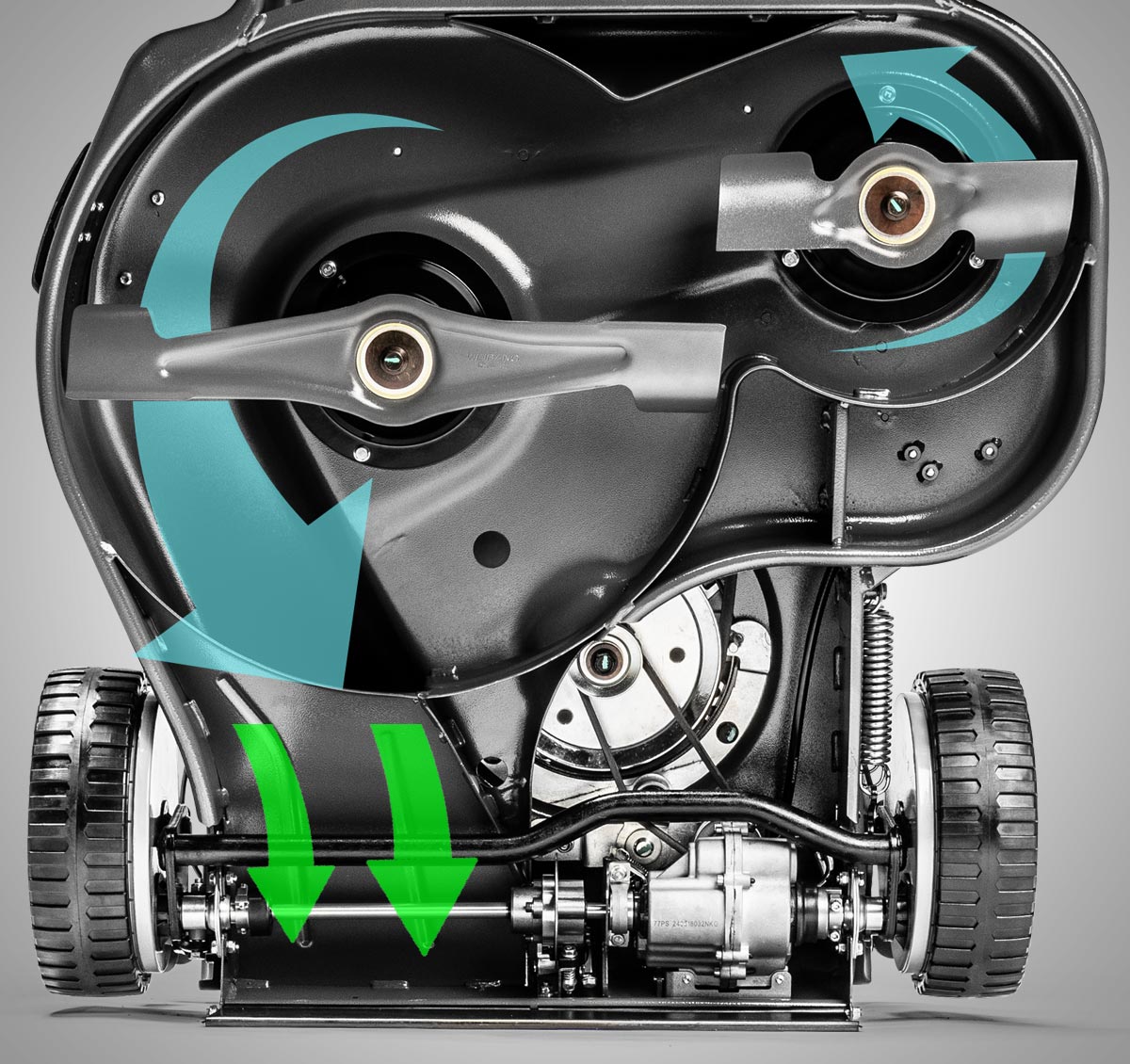

TBO – Twin Blade System

The newest addition to the Virtue range offers an unrivalled 77cm cutting width with a twin blade overlap design. Enabling the largest areas to be cut with ease and with an additional 45% more productivity when compared to a 53cm model, the 77 TBO is the flagship of the Virtue family. It is the overlap deck design that allows for a wide area to be cut efficiently and gives huge benefits to the collection, side discharge and mulching performance.

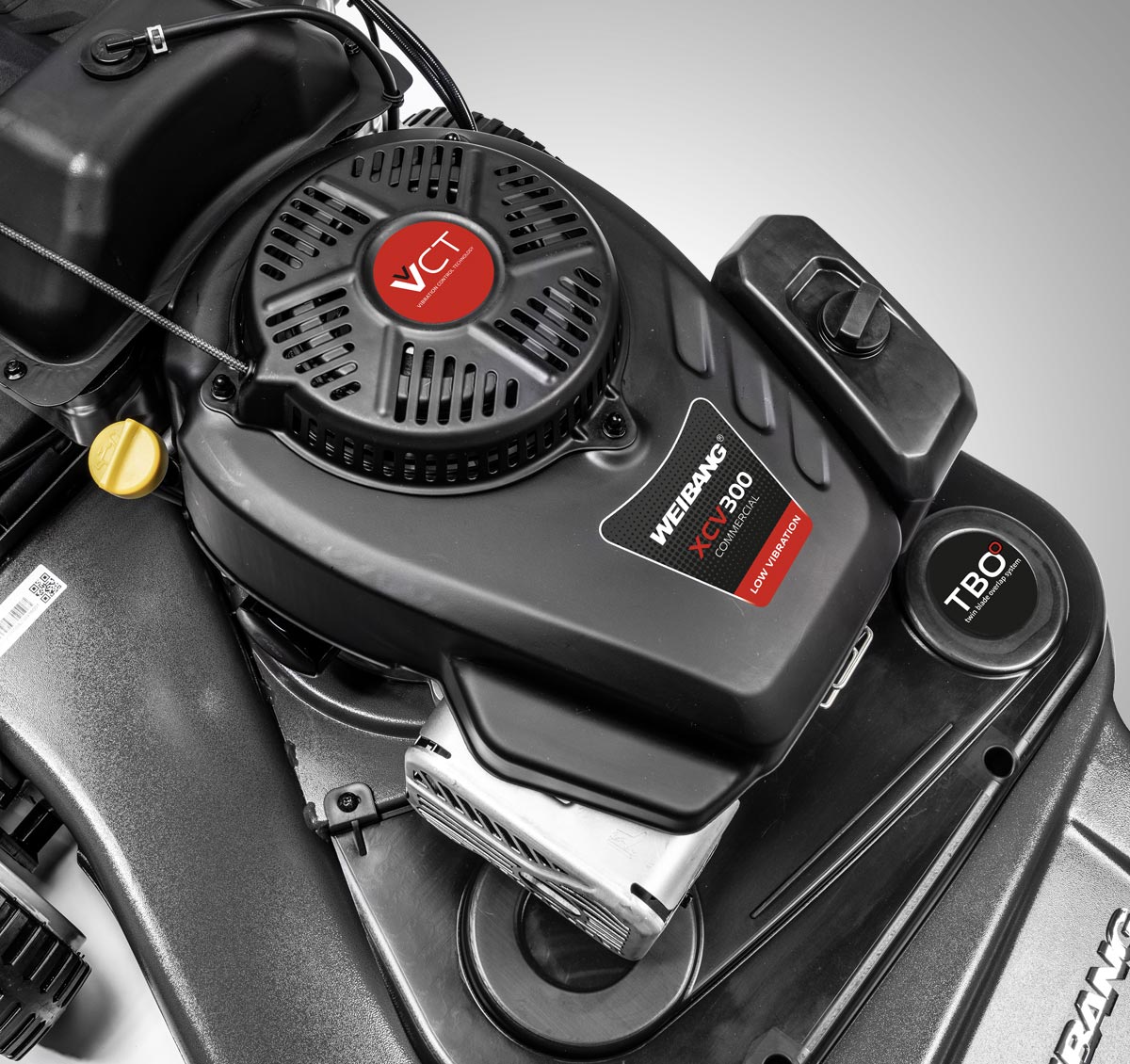

WEIBANG VCT Engine

The Virtue 77 TBO features the latest generation WEIBANG XCV Series engine. The new design offers exceptionally low vibration thanks to new engineering techniques and features 300cc / 5.6kW power output for consistent performance. The engine also produces 17.3 Nm of torque giving the power needed for tough conditions.

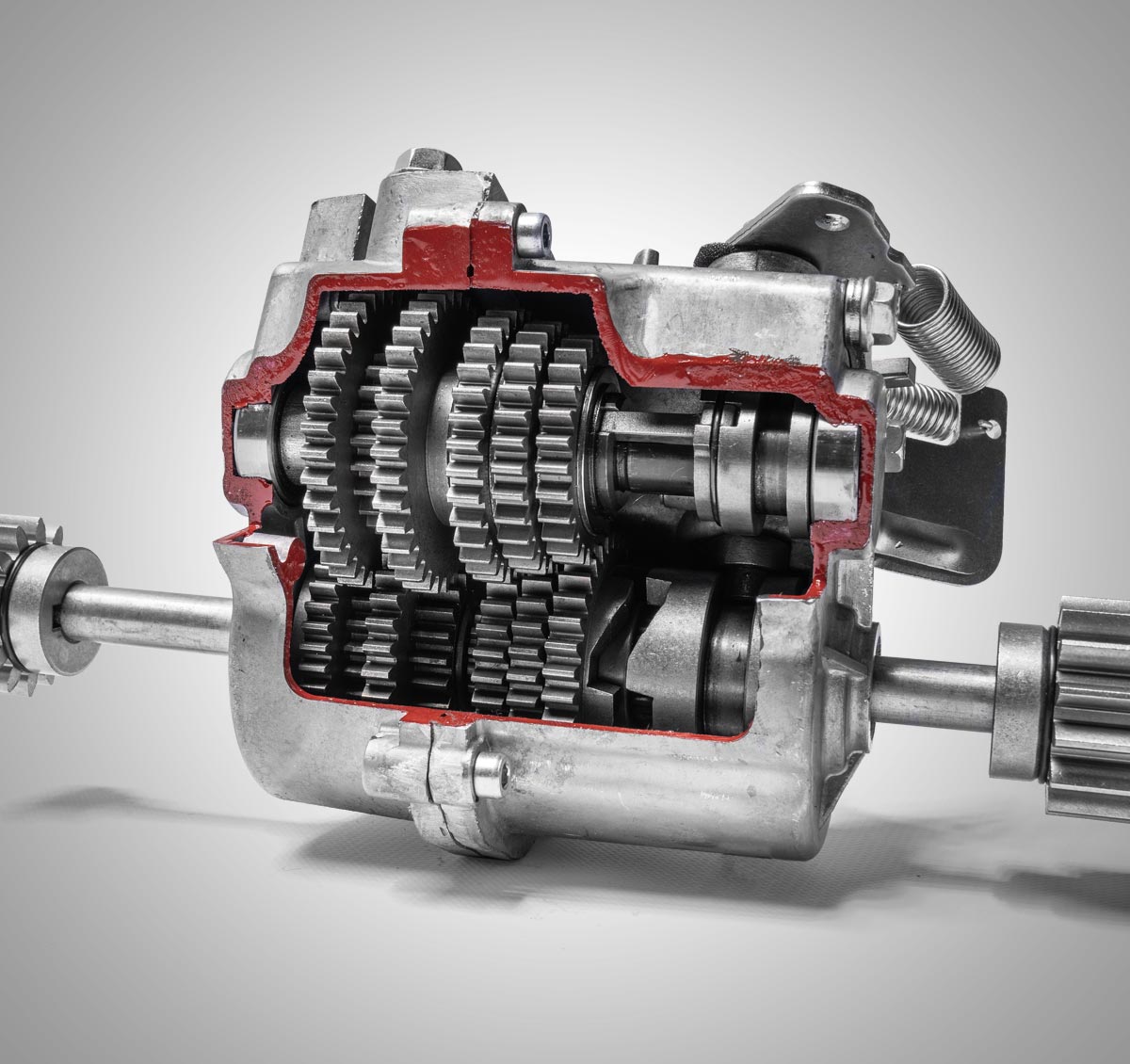

PROFESSIONAL ALUMINIUM GEARBOX

The Virtue 77 TBO features a heavy duty commercial 3 speed gearbox. Manufactured with high quality aluminium casings, hardened steel internal components, and solid gears to ensure precise and reliable drive.

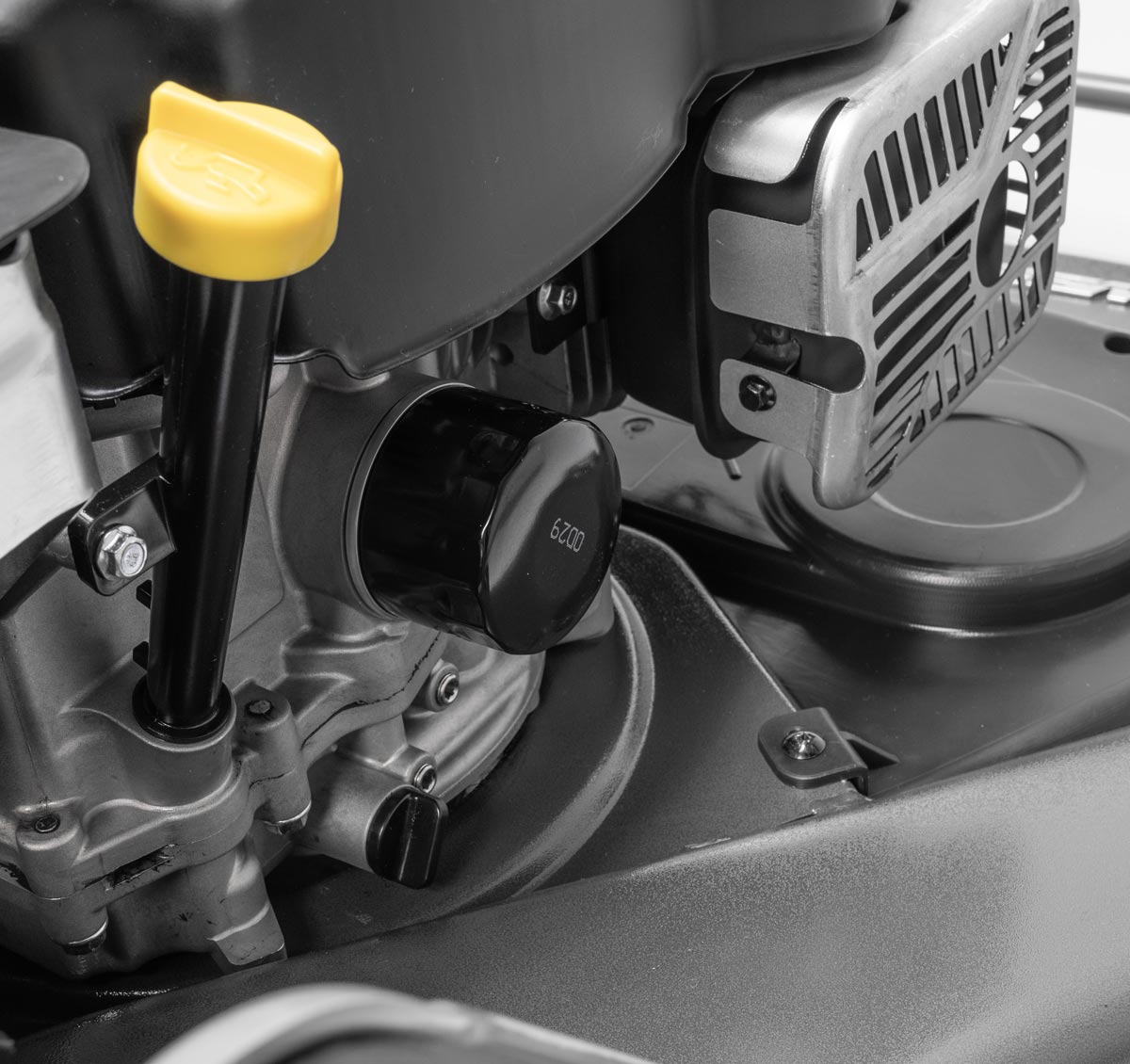

PRESSURE LUBRICATED

The XCV300 engine features pressure lubrication with a spin-off oil filter for ease of maintenance. The pressurised system ensures ultimate durability as well as the ability to work on slopes.

MAXIMUM PRODUCTIVITY

With a large 77cm dual blade cutting width the 77 TBO offers an incredible increase in productivity of 45% when compared to our 53cm Virtue models, allowing areas of up to 4500m² to be cut with ease.

TBO – Twin Blade System

The newest addition to the Virtue range offers an unrivalled 77cm cutting width with a twin blade overlap design. Enabling the largest areas to be cut with ease and with an additional 45% more productivity when compared to a 53cm model, the 77 TBO is the flagship of the Virtue family. It is the overlap deck design that allows for a wide area to be cut efficiently and gives huge benefits to the collection, side discharge and mulching performance.

WEIBANG VCT Engine

The Virtue 77 TBO features the latest generation WEIBANG XCV Series engine. The new design offers exceptionally low vibration thanks to new engineering techniques and features 300cc / 5.6kW power output for consistent performance. The engine also produces 17.3 Nm of torque giving the power needed for tough conditions.

PROFESSIONAL ALUMINIUM GEARBOX

The Virtue 77 TBO features a heavy duty commercial 3 speed gearbox. Manufactured with high quality aluminium casings, hardened steel internal components, and solid gears to ensure precise and reliable drive.

PRESSURE LUBRICATED

The XCV300 engine features pressure lubrication with a spin-off oil filter for ease of maintenance. The pressurised system ensures ultimate durability as well as the ability to work on slopes.

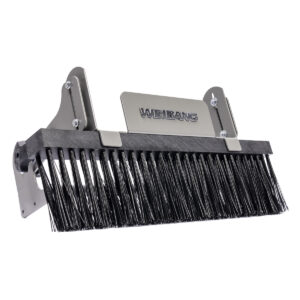

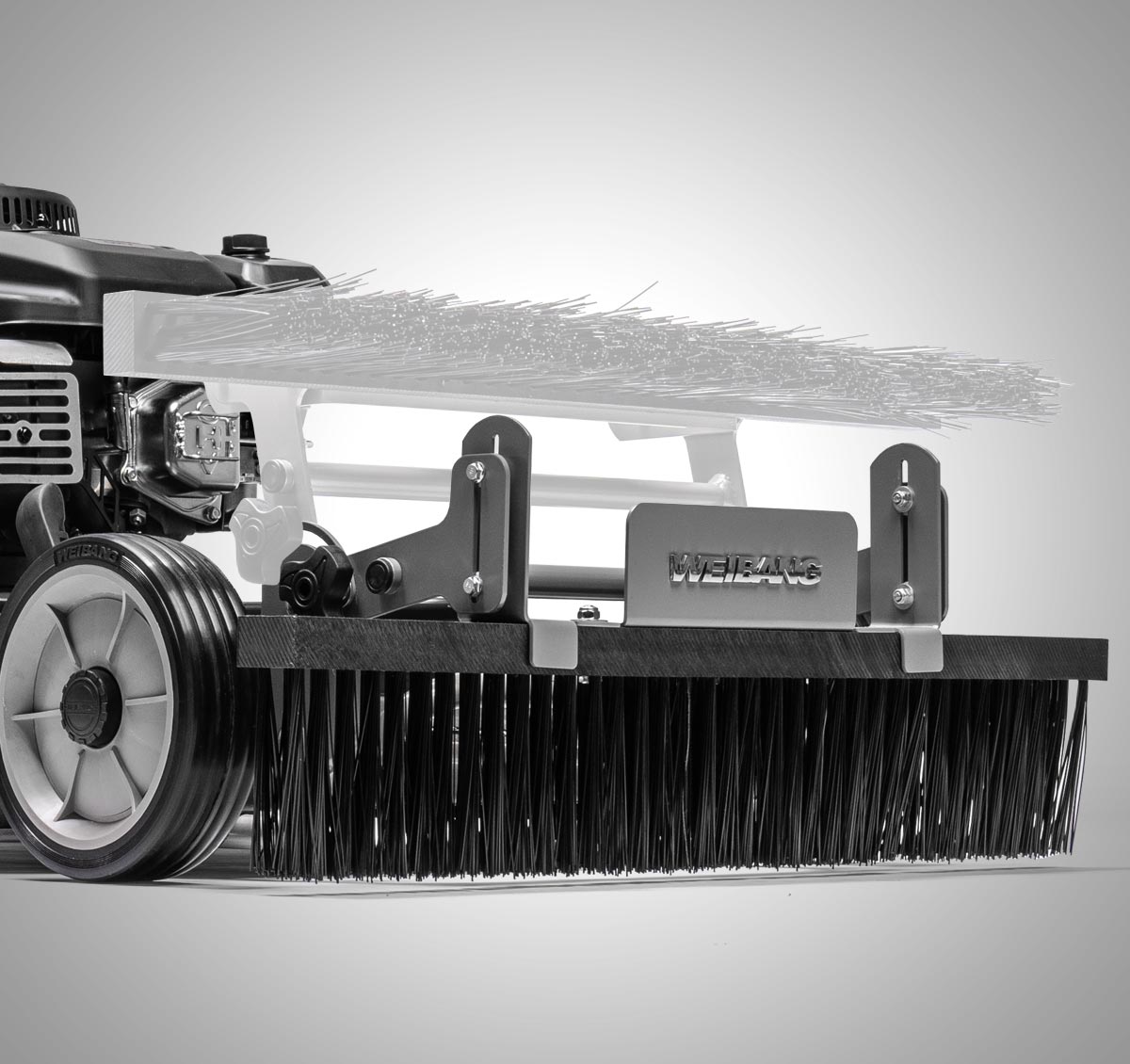

OPTIONAL STRIPE BRUSH
The optional stripe brush is fully adjustable and can be lowered into position when working, and raised up for transportation. The brush itself also features a height adjustment to alter the intensity when in use. The brush does not require any tools to remove when not being used and incorporates a bumper, rather than the original bumper being used.

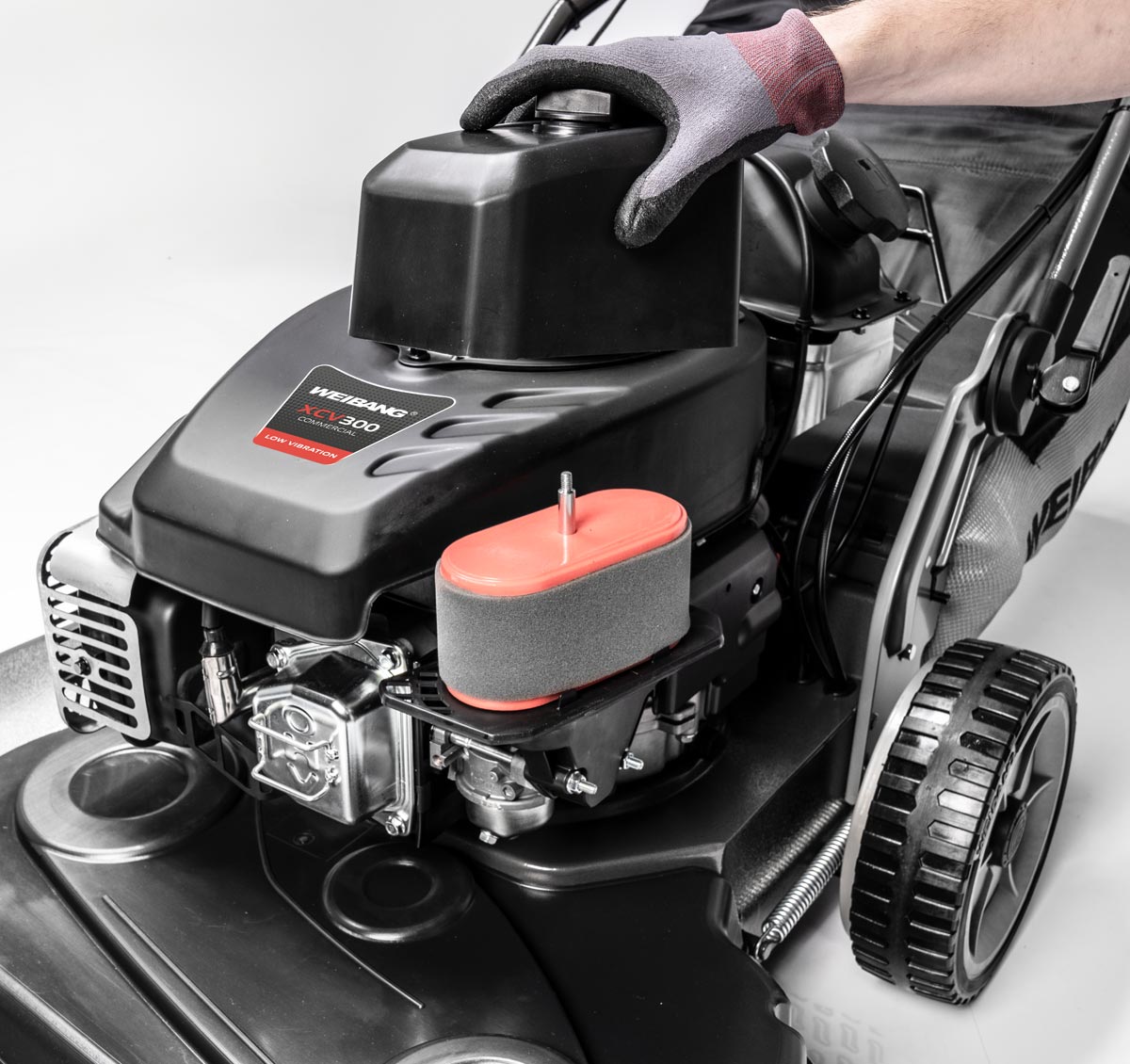

EASY MAINTENANCE
As a commercial machine the 77 TBO was designed for simple maintenance, with easy access to the oil dipstick, spark plug, oil and air filters, to make routine maintenance fast and minimise downtime.

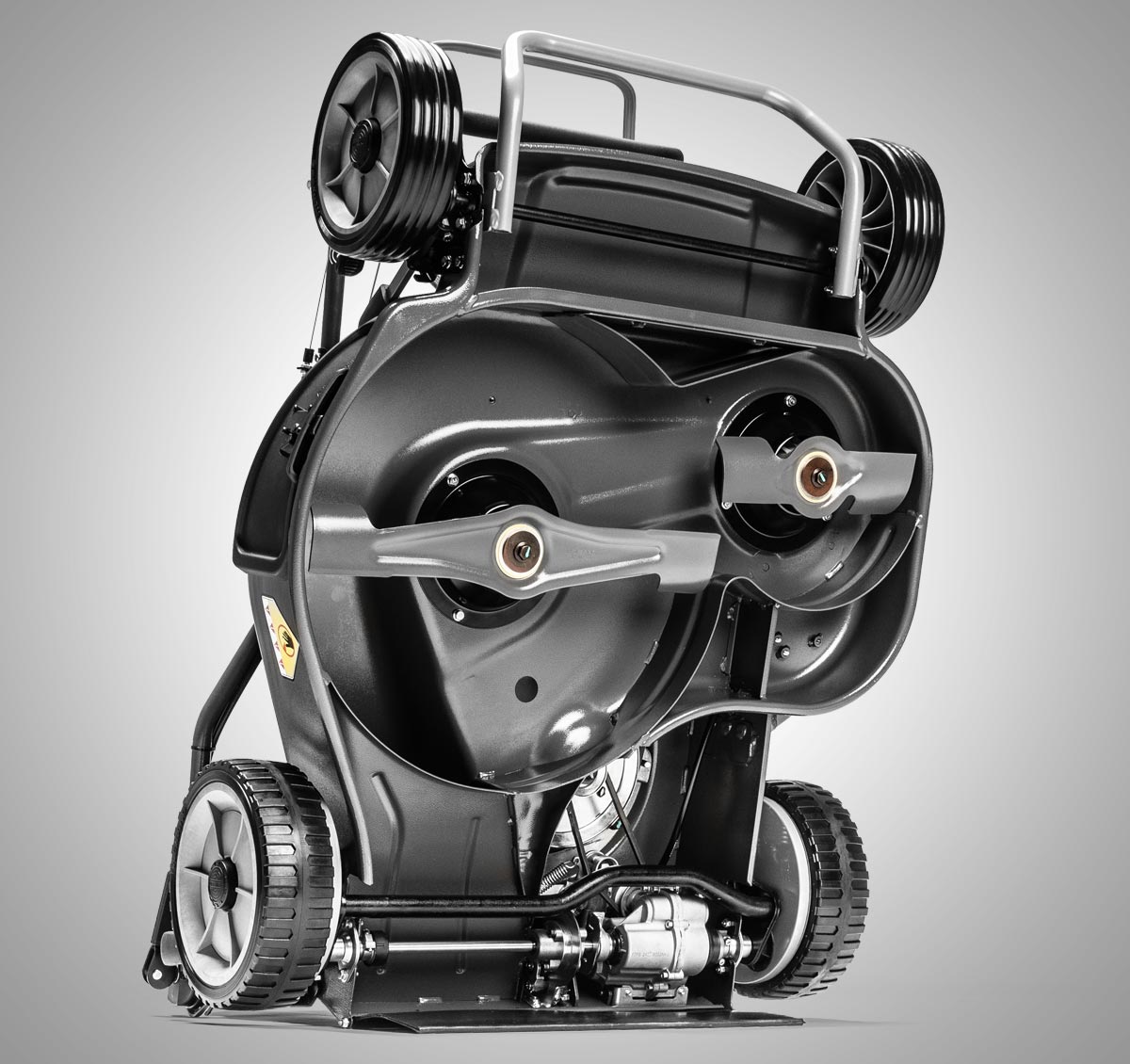

SERVICE & STORAGE POSITION
As a commercial lawnmower, easy transportation is key which is why we developed our quick release folding handles to allow for easy lifting when moving between locations, and easy access to the underside of the deck in the service position for cleaning and general maintenance.

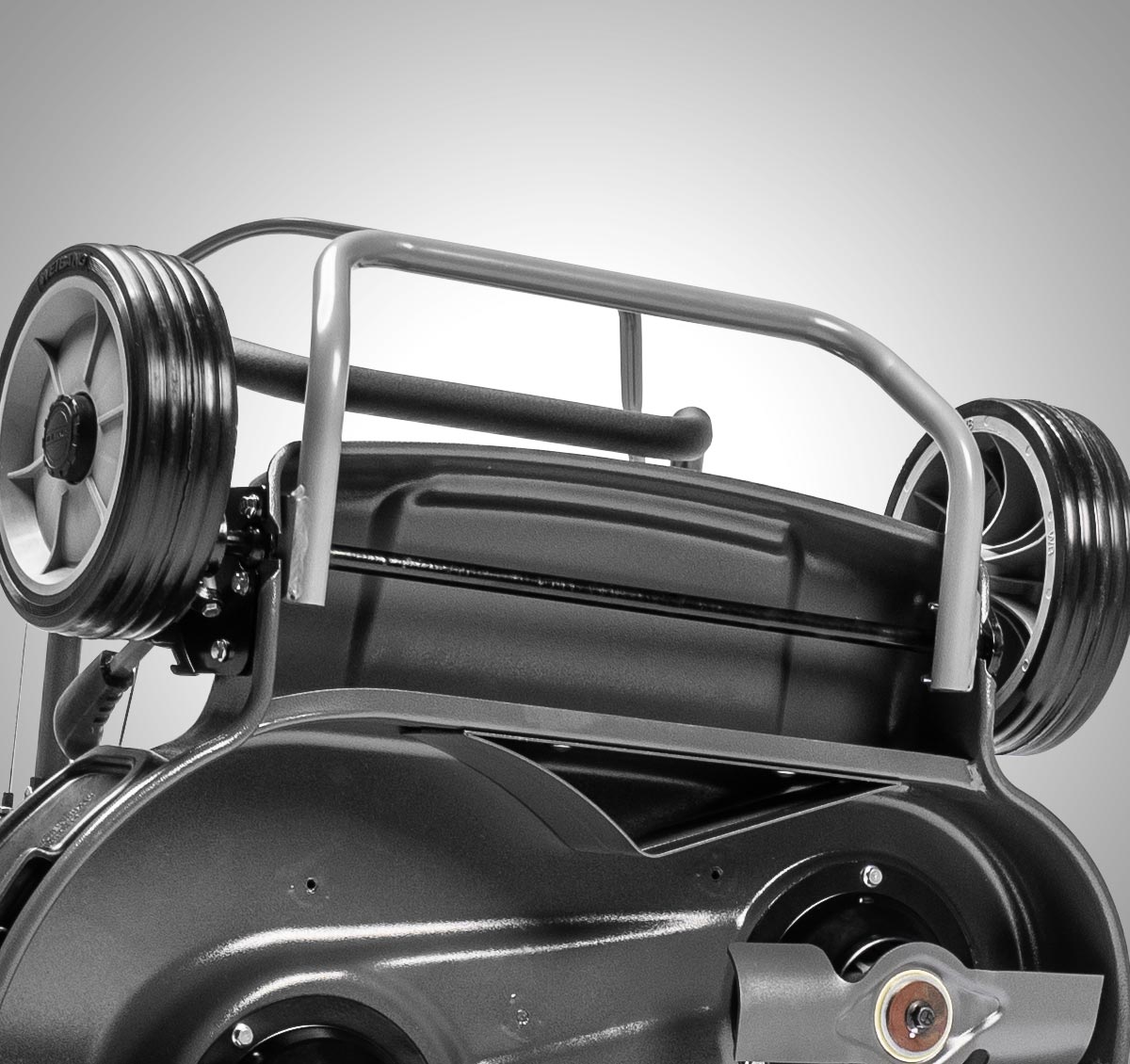

HEAVY DUTY BUMPER & ROLLED EDGE DECK
The cutter deck and front wheels are protected from accidental knocks by a heavy duty front bumper, which doubles up as a lifting handle for transportation. Due to the larger size of the machine additional deck rigidity comes from the specially designed rolled steel edge to the deck.

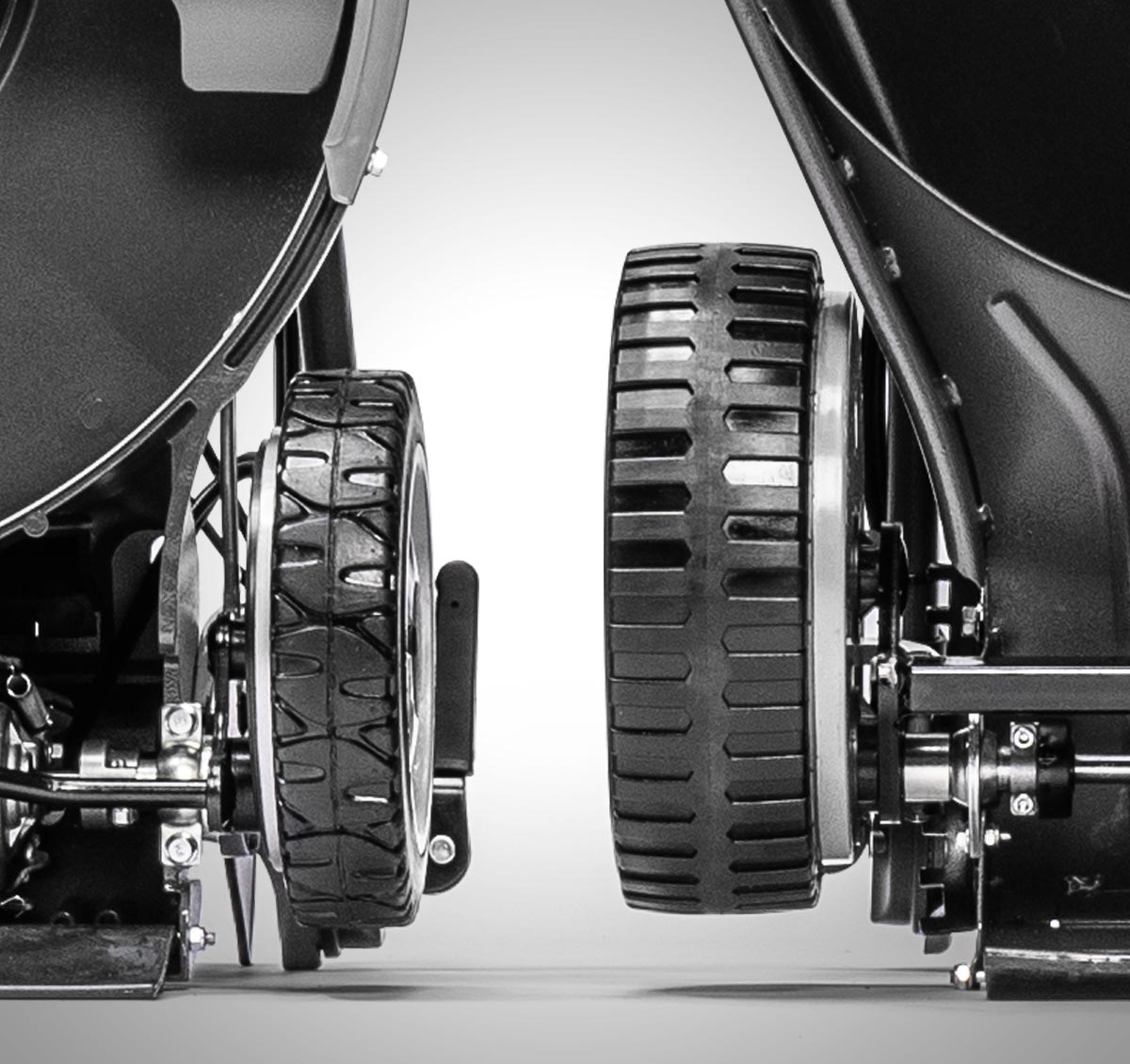

NEW WIDER WHEELS
Due to the additional weight of the machine we have increased the diameter and width of the front and rear wheels to ensure that the ground pressure is the same as a 53cm model, avoiding wheel marks on the lawn.
INDEPENDENT HEIGHT OF CUT
The 77 TBO features independent height adjustment for the front and rear of the machine with 15 cutting heights from 17mm – 129mm to maintain any grass area whether short and formal or longer and more natural.

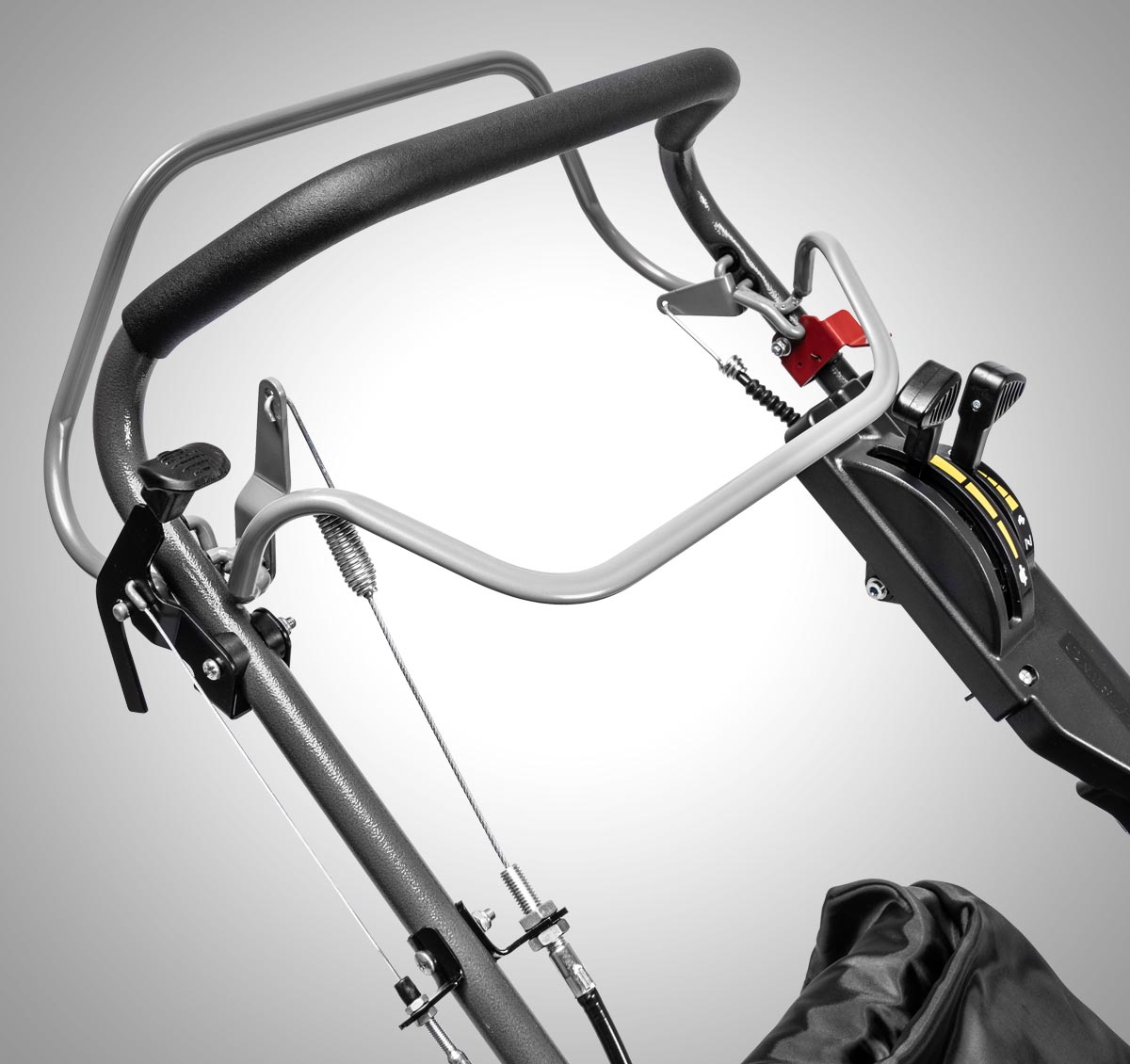

EASY TO OPERATE
The WEIBANG controls are designed for simple operation and unrivalled durability. Featuring a heavy duty rubber grip, flush OPC and drive levers for user comfort, and simple throttle and speed levers which can be easily accessed for routine maintenance. Due to the additional weight of the 77 TBO the handles feature a parking brake, ensuring safety when not in use or during transport. The blade brake system also allows drive to function without the blade engaged.
SIDE DISCHARGE
The Virtue 77 TBO offers 4 in 1 functionality, with rear discharge and rear collect, side discharge for overgrown areas such as paddocks and pathways, and mulching.

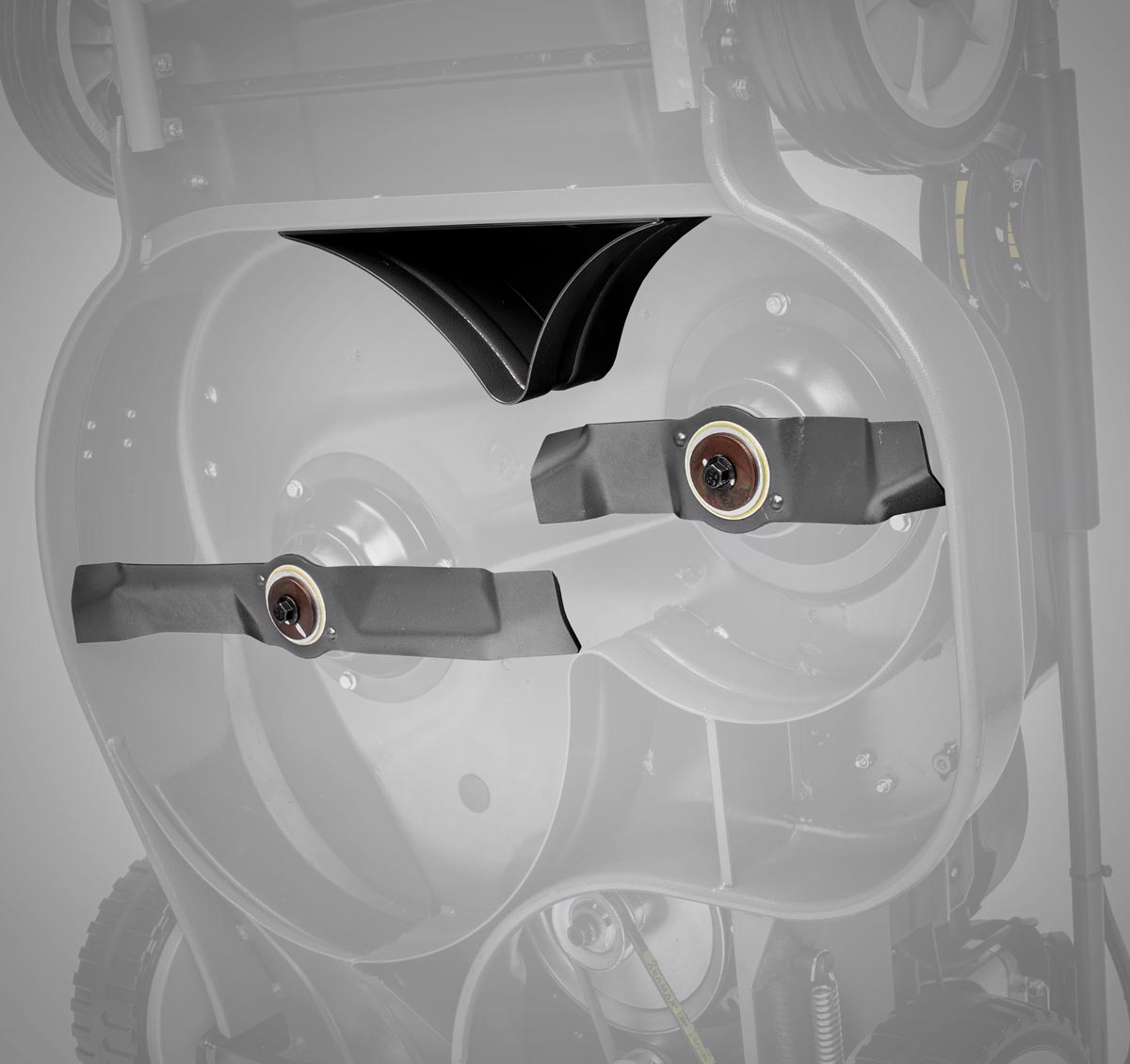

HIGH PERFORMANCE MULCHING
The 77 TBO includes a high performance mulch kit comprising of specially designed blades and a deeper baffle plate to hold grass in the cutter deck for continuous cutting. Thanks to the service and storage position, the mulching kit can be fitted with ease.
LARGE 90L COLLECTOR
The large 90L collector allows longer cutting periods between emptying as well as featuring airflow fabric to indicate when the collector is full and avoid blockages. The grassbag has had additional reinforcement added to the material on the corners and sides to handle the additional weight from long wet grass.

Product Information

VIRTUE 77 TBO

Additional information

Model

77 TBO
Article Number

WGMP140
Cutting Width (cm/”)

77 / 30.5 Twin Blade Overlap
Cutter Deck Material

Steel
Suitable Area

up to 4500m²
Drive

PRO 3 Speed
Drive Speed

3 / 3.5 / 4.6 km/h
Blade Brake Clutch

Blade Brake
Engine Make

WEIBANG
Engine Model

XCV300
Engine Displacement (cc)

300
Engine Rated Power (kW/rpm)

5.6 / 3200
Fuel Tank Capacity (l)

4
Blade Protection

CPS – Slip Washer
Collector Capacity (l)

90 – Inc. Airflow Fabric
Rear Discharge

Yes
Mulching

Yes – High Performance Kit
Side Discharge

Yes
Height Adjustment Type

Independent Front & Rear
Height Adjustment Positions

15
Cutting Heights (mm)

17 – 129 (Collect & Side Discharge) / 29 – 129 (Mulching)
Quick Release Handles

Adjustable Ratchet
Service Position

Yes

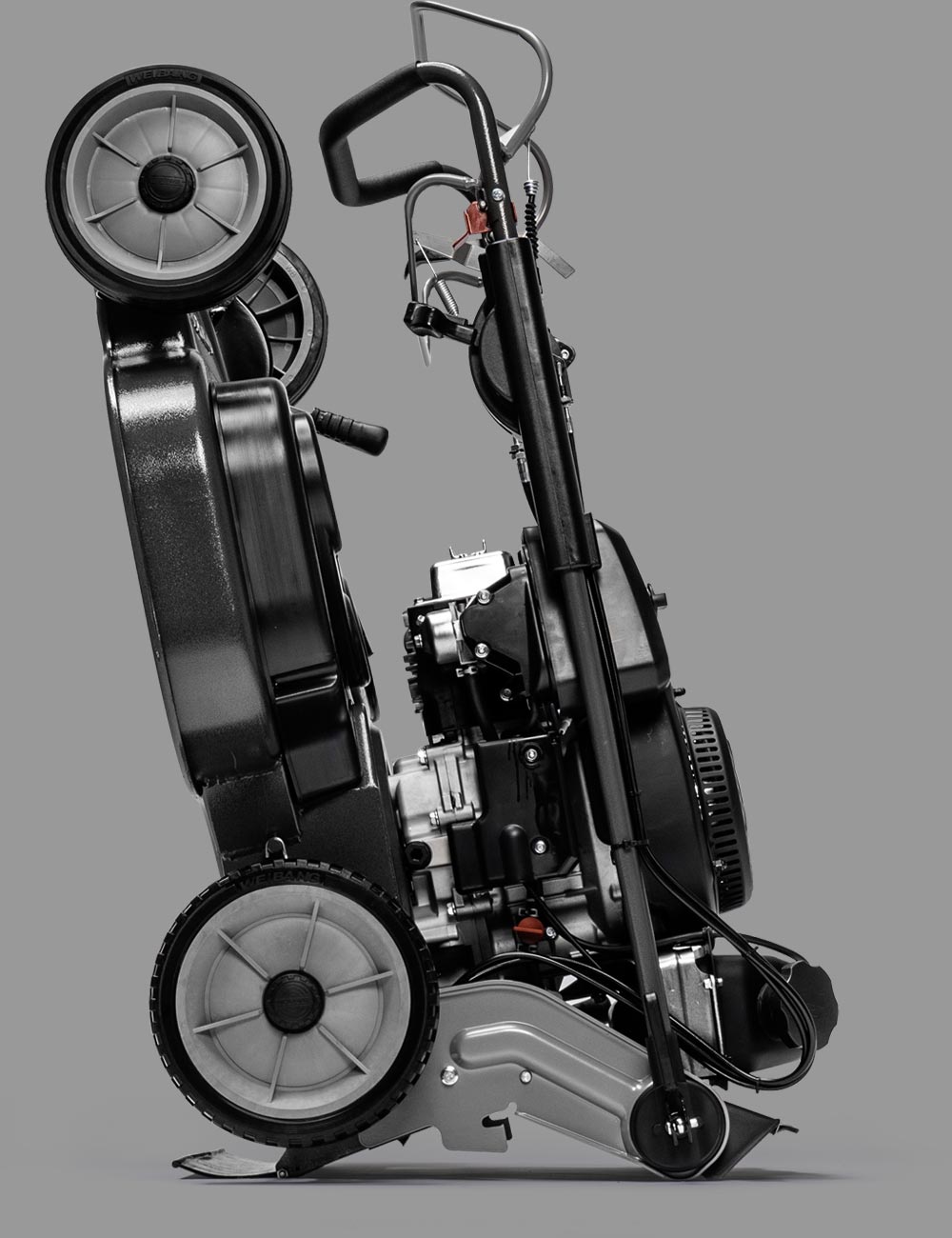

Storage / Transport Position

Yes
Front Bumper

Yes
Deck Protection

Rolled Deck Lip
Wheel Material (rim/tyre)

HD Nylon / Polyurethane
Wheel Size (mm)

F 230 (65 wide) / R 265 (80 wide)
Weight (kg)

108
Dimensions LxWxH (mm)

1960 x 820 x 1250
Storage Dimensions LxWxH (mm)

1200 x 820 x 610
Vibration Level (m/s²)

4.5
Noise Level (dB(A))

100
Warranty

1 Year Commercial
How do I store the lawnmower over the winter?
Ensure the mower is clean and dry before storing over the winter in your garden shed or garage. We recommend adding B3C Ethanol Shield Fuel Stabiliser to the fuel throughout the mowing season which protects the engine from damage caused by Ethanol in fuel. If a fuel stabiliser is not usually used, we would advise to add some to the fuel before you store the mower and allow the engine to run for approximately 10 minutes to ensure the stabiliser passes through the fuel system.
Is it ok to clean the grass collector with a hose pipe?
Yes, it is important that the grass collector is kept as clean as possible. The special airflow design of the collector aids the collection capability of the mower. If the fabric is covered in grass cuttings, airflow is restricted leading to reduced collection performance. Grass clippings which are left on the collector for prolonged periods of time can also cause the fabric to break down.
How often should I have the Weibang Legacy lawnmower serviced?
We advise that to keep any warranty valid and the high performance of the mower is maintained, the lawn mower should be serviced annually at your local Weibang service dealer. A good time to have the lawnmower serviced is at the end of the season prior to storing it away for the winter so you can be sure the mower is ready for when the next season comes around
How much oil goes in the engine?
1L of 10W30
When should I change the oil?
First oil change at 5 hours, then every 50 hours or 6 months.
