LEGACY 48 PRO BBC LV

The Legacy 48 PRO BBC LV rear roller from WEIBANG offers uncompromising quality, performance and durability, as well as an unrivalled cut for formal areas requiring a traditional striped finish, such as formal lawns or sports pitches.

RRP incl. VAT

£1,649.00

FIND YOUR LOCAL DEALER



DESCRIPTION

The Legacy 48 PRO BBC LV features a 48cm / 19″ aluminium cutter deck with central height adjustment from 13-67mm. Powered by a WEIBANG XCV200 low vibration engine and featuring a WEIBANG PRO Blade Brake Clutch system to disengage the blades while the engine is running, it’s perfect for when moving between lawns or emptying the grass collector.
Email
WhatsApp
Facebook
Copy Link

Find a Legacy dealer near you

LEGACY 48 PRO BBC LV Features

PRO Blade Brake Clutch

Featuring our heavy duty WEIBANG PRO Blade Brake Clutch (BBC), allowing the operator to stop the blades while keeping the engine running. Engineered to the highest standards, the WEIBANG PRO BBC is nearly double the size of other BBC’s on the market and offers unrivalled reliability and serviceability.

PRO 3 Speed Gearbox

The Legacy range features our flagship PRO 3 speed gearbox, offering the ultimate in performance and reliability for the professional user. Engineered to the highest standards, the gearbox is nearly double the size of other models on the market with 3 solid gears and features a full 3 year commercial warranty.

Aluminium Cutter Deck

All Legacy rear roller mowers feature a high performance aluminium cutter deck in either 48 or 56cm cutting width. Designed for optimum airflow to ensure high collection performance in all conditions, the deck also features a durable hammered paint finish and a 25 year guarantee.

XCV200 Engine featuring Vibration Control Technology

The WEIBANG XCV200 offers an exceptionally reliable engine with professional performance. With 196cc and 3.5kW power output, the XCV200 has all the power and torque required to offer a consistently high quality cutting finish in any conditions. Thanks to vibration control technology, the engine dramatically reduces vibration levels for all day use.

Heavy Duty Rear Roller

The rear roller of the Legacy range has a unique design unlike any other roller mower. The split steel ribbed roller is connected with an industrial grade roller ratchet which is encased in a vacuum locked seal to prevent grass, dirt and water from entering. For additional durability the roller chain cover has been specially heat treated and reinforced to avoid wear during use.

PRO Blade Brake Clutch

Featuring our heavy duty WEIBANG PRO Blade Brake Clutch (BBC), allowing the operator to stop the blades while keeping the engine running. Engineered to the highest standards, the WEIBANG PRO BBC is nearly double the size of other BBC’s on the market and offers unrivalled reliability and serviceability.

PRO 3 Speed Gearbox

The Legacy range features our flagship PRO 3 speed gearbox, offering the ultimate in performance and reliability for the professional user. Engineered to the highest standards, the gearbox is nearly double the size of other models on the market with 3 solid gears and features a full 3 year commercial warranty.

Aluminium Cutter Deck

All Legacy rear roller mowers feature a high performance aluminium cutter deck in either 48 or 56cm cutting width. Designed for optimum airflow to ensure high collection performance in all conditions, the deck also features a durable hammered paint finish and a 25 year guarantee.

XCV200 Engine featuring Vibration Control Technology

The WEIBANG XCV200 offers an exceptionally reliable engine with professional performance. With 196cc and 3.5kW power output, the XCV200 has all the power and torque required to offer a consistently high quality cutting finish in any conditions. Thanks to vibration control technology, the engine dramatically reduces vibration levels for all day use.

Heavy Duty Rear Roller

The rear roller of the Legacy range has a unique design unlike any other roller mower. The split steel ribbed roller is connected with an industrial grade roller ratchet which is encased in a vacuum locked seal to prevent grass, dirt and water from entering. For additional durability the roller chain cover has been specially heat treated and reinforced to avoid wear during use.
Full Deck Protection
The cutter deck of the Legacy features fully replaceable protection, with a steel inner deck liner to prevent damage from stones and other objects, and outer steel deck liners to protect the aluminium deck when mowing near walls or other inevitable knocks during use.
VRS - Vibration Reduction System
The Legacy features WEIBANG’s Vibration Reduction System (VRS). This is a heavy duty aluminium bracket with a rubber AV liner that dampens vibration through the handles, as well as adding additional strength and durability.

The quick release handles also feature an aluminium ratchet system with cable protection, allowing for full height adjustment to suit any operator while keeping cables safe.
Central Height Adjustment
The central height adjustment is supported by a heavy duty spring for assistance. With a choice of 11 positions between 13 and 67mm the Legacy is capable of tackling anything from a short formal lawn to more natural areas. The height of cut can be adjusted in 5/6 mm increments allowing for the perfect finish and stripe on any lawn.
Heavy Duty Bumper & Air Fins
The cutter deck and front wheels are protected from accidental knocks by a heavy duty front bumper, which doubles up as a lifting handle for transportation. The integrated fins mounted at the front of the cutter deck allow maximum airflow into the cutter deck, ensuring the highest collection performance at any cutting height.

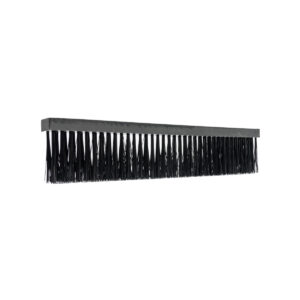

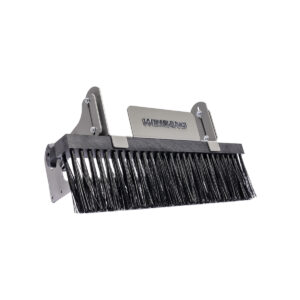

Optional Stripe Brush
The optional stripe brush is fully adjustable and can be lowered into position when working, and raised up for transportation. The brush itself also features a height adjustment to alter the intensity when in use. The brush does not require any tools to remove when not being used and incorporates a bumper, rather than the original bumper being used.
Emptying Handle
The collector features a full width rear handle that doesn’t pinch the collector during emptying, resulting in easier and faster emptying of the large fabric bag.
Easy Cable Access
All models feature an open back cockpit design, offering simple easy access to cables for adjustment or routine maintenance. Furthermore, the cables feature a heavy duty design with dust covers and spring mountings for added durability.
Durable Grip & Replaceable Bushes
The handles feature a high density professional grip for comfort and durability over long periods of use. The OPC and drive levers are fitted into replaceable plastic bushes for smooth operation and an extended life.

Product Information

LEGACY 48 PRO BBC LV

Additional information

Model

48 PRO BBC LV
Cutting Width (cm/”)

48 / 19
Cutter Deck Material

Aluminium
Drive

PRO 3 Speed
Drive Speed

3 / 3.5 / 4.6 km/h
Blade Brake Clutch

WEIBANG PRO BBC
Engine Make

WEIBANG
Engine Model

XCV200
Engine Displacement (cc)

196
Engine Rated Power (kW/rpm)

3.5 / 3600
Fuel Tank Capacity (l)

1
Blade Protection

CPS Blade
Collector Capacity (l)

72 – Inc. Airflow Fabric
Rear Discharge

Yes
Mulching

No
Side Discharge

No
Height Adjustment Type

Central Spring Assisted
Height Adjustment Positions

11
Cutting Heights (mm)

13 – 67
Quick Release Handles

Adjustable Ratchet
Service Position

Yes
Storage / Transport Position

Yes
Front Bumper

Yes
Deck Protection

Inner & Outer
Wheel Material (rim/tyre)

HD Nylon / Polyurethane
Wheel Size (mm)

F 178 / R 127
Dimensions LxWxH (mm)

1670 x 530 x 1090
Storage Dimensions LxWxH (mm)

980 x 530 x 540
Vibration Level (m/s²)

3.6
Noise Level (dB(A))

96
Warranty

3 Year Commercial
What does a Blade Brake Clutch do?
The Blade Brake Clutch (BBC) allows easy engagement and disengagement of the mower blade whilst the engine is running. This allows the user to empty the grass collector or move to a different mowing area without the engine requiring to be turned off and restarted.
The Weibang Rear Roller Mowers are heavier than other roller mowers on the market. Why is this?
Weibang Legacy rear roller mowers are manufactured using heavy duty, robust components to guarantee a long service life. The Weibang Legacy range of rear roller mowers are designed to leave a clear attractive stripe on the lawn and in order to achieve this, there needs to be adequate weight over the rear roller.
Can you mulch using a Weibang Legacy roller mower?
The Weibang Legacy roller mowers do not have a mulch function. In order to achieve the clearest stripe, optimum collection performance is essential. If you are looking for a mower capable of mulching, we recommend looking at the four wheeled Weibang Virtue lawn mower range.
How do I store the lawnmower over the winter?
Ensure the mower is clean and dry before storing over the winter in your garden shed or garage. We recommend adding B3C Ethanol Shield Fuel Stabiliser to the fuel throughout the mowing season which protects the engine from damage caused by Ethanol in fuel. If a fuel stabiliser is not usually used, we would advise to add some to the fuel before you store the mower and allow the engine to run for approximately 10 minutes to ensure the stabiliser passes through the fuel system.
Is it ok to clean the grass collector with a hose pipe?
Yes, it is important that the grass collector is kept as clean as possible. The special airflow design of the collector aids the collection capability of the mower. If the fabric is covered in grass cuttings, airflow is restricted leading to reduced collection performance. Grass clippings which are left on the collector for prolonged periods of time can also cause the fabric to break down.
How often should I have the Weibang Legacy lawnmower serviced?
We advise that to keep any warranty valid and the high performance of the mower is maintained, the lawn mower should be serviced annually at your local Weibang service dealer. A good time to have the lawnmower serviced is at the end of the season prior to storing it away for the winter so you can be sure the mower is ready for when the next season comes around
Who should I contact if I need a spare part for my Weibang Legacy roller mower?
Your local Weibang dealer will be able to provide you with any spare part for your Weibang Legacy lawn mower.
How much oil goes in the engine?
0.6L of 10W30
When should I change the oil?
First oil change at 5 hours, then every 50 hours or yearly.
